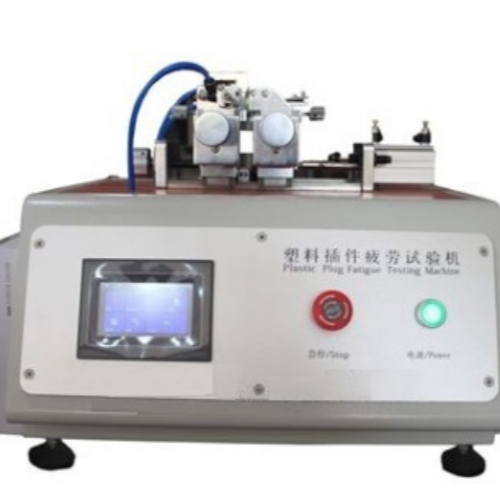

Bag Plastic Buckle Durability Tester

It is mainly used to test the service life of plastic plug-ins in luggage accessories.

Applications

This machine simulates the use of plastic clasp under reciprocating open and close movement to a specified number of times at a certain frequency. And testing the quality of plastic clasps for luggage and clothing.

Standards

QBT 5247-2018:Hardware fitting of case and bag-Test method for durability of plastic buckle

Features

1. We have a strong after-sales service team;

2. We can handle various problems promptly and efficiently, relieving our customers of any worries;

3. We have a complete range of spare parts, eliminating the hassle of long lead times for ordering parts;

4. We keep up with industry standard updates and provide testing instruments that meet the latest standards in a timely manner.

Technical Parameters

Accessoriess

It consists of two sets of sample clamps, left and right. The left sample clamp fixes the upper part of the connector and can periodically press the locking mechanism of the connector (left and right locking or up and down locking); the right sample clamp cooperates with the left one to make the upper and lower parts of the connector move horizontally back and forth, with adjustable movement frequency.

1. Counter: Records the number of opening and closing cycles; one opening and closing cycle counts as one time.

2. Control device:  It has an automatic stop function in case of sample abnormality during the test and also has a memory function.

Test Procedures

To ensure the long-term stable operation of the testing machine, the following maintenance procedures should be performed regularly:

1. Accuracy Calibration

Calibrate the equipment annually using calibration weights and a torque wrench, keeping the error within 3%.

2. Cleaning and Maintenance

Cover the machine with a dust cover after each use, regularly clean dust from the drive bearings and guide rails, and perform lubrication maintenance every 9 million cycles.

3. Fixture Replacement

For recycled plastics containing additives or high-temperature flame-retardant materials, calibrate the parameters separately and replace with suitable fixtures.

4. Safety Protection

Ensure the equipment is properly grounded, avoid direct exposure of antibacterial components to ultraviolet light, and prevent changes in material properties from affecting test results.
