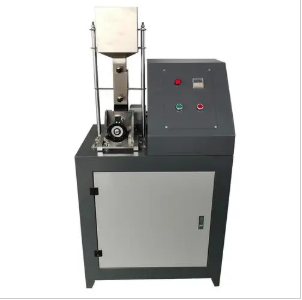

Steel wheel wear testing machine

The cycloidal pinwheel reducer has the advantages of large reduction ratio, compact structure, smooth transmission and adjustable abrasive flow rate, which can effectively save the amount of abrasive. The testing machine through the gear drive deceleration to steel wheel speed 75r/min, gear drive compared with the belt drive deceleration, smooth, no skid phenomenon, steel wheel rotation by the time relay control, the motor to the predetermined time is also transferred to the test requirements of the speed

The motor stops automatically. The testing machine has the characteristics of reasonable design, simple structure, beautiful appearance, easy operation, smooth rotation, automatic shutdown to meet the test requirements, etc., which is mainly suitable for wear resistance test of cement bricks.

Application

The steel wheel wear testing machine is widely used in materials science and engineering to evaluate the wear characteristics of various materials. It simulates the wear process of materials in actual use by applying friction from a steel wheel under fixed testing conditions. This method effectively simulates the actual performance of materials under friction and wear conditions.

Standard:

GB/T3810.7-2016: Test methods of ceramic tiles—Part 7: Determination of resistance to surface abrasion for glazed tiles

ISO/DIS10545/6-94 : Ceramic tiles - Determination of resistance to deep abrasion for unglazed tiles (ISO/DIS 10545-6:1994)

GB/T12988-1009: Test method for abrasion resistance of inorganic paving materials

EN 932-5: Tests for general properties of aggregates - Common equipment and calibration

ISO3310-2: Test sieves - Technical requirements and testing - Part 2: Test sieves of perforated metal plate

ASTM E11: Standard Specification for Woven Wire Test Sieve Cloth and Test Sieves

BS 410-1: Test sieves - Part 1: Wire cloth test sieves

BS 410-2: Test sieves - Part 2: Perforated metal plate test sieves

Product Advantages:

Provides precise and repeatable wear resistance testing for a range of building materials.

Complies with key international and national standards, including GB/T3810.7. ISO 10545-6. and GB/T12988.

Features a cycloidal pinwheel reducer for smooth transmission, large reduction ratio, and adjustable abrasive flow rate, promoting abrasive saving.

Utilizes a gear drive deceleration system for stable rotation and no skidding, ensuring accurate test conditions.

Offers automatic shutdown based on time relay control, enhancing test efficiency and convenience.

Characterized by reasonable design, simple structure, aesthetic appearance, and ease of operation.

Capable of simulating long-term abrasive wear in a controlled laboratory setting.

Features:

Cycloidal Pinwheel Reducer: Provides efficient and stable speed reduction with a large ratio.

Gear Drive Deceleration System: Ensures smooth, non-skid transmission of power to the grinding wheel.

Steel Grinding Wheel: Two types available with specific dimensions (Diameter 200±0.2mm, Thickness 10±0.1mm or 70±0.1mm) and hardness (HB203-245 for the thicker wheel).

Time Relay Control: Precisely controls the rotation duration of the grinding wheel, enabling automatic shutdown.

Abrasive Feeding System: Includes a hopper with a volume greater than 5L and a mechanism for feeding abrasive at an adjustable flow rate.

Sample Loading Mechanism: Designed to securely hold samples of specified dimensions (100mm x 110mm) under defined loads.

Weight Sets: Includes two different weight sets (2.5kg for GB/T3810.7-2006 and 14kg for GB/T12988-91) to apply varying loads according to different standards.

Digital Display: For presetting and displaying test time.

Parameters:

Accessoriess

Steel wheel

Abrasive material (such as brown fused alumina sand)

Reduction gear mechanism (such as a cycloidal pinwheel planetary gear transmission)

Loading device

Drive motor

Specimen holder, etc.

Test Procedures

1- The sample to be tested is fixed with the help of fixing apparatus.

In order start using to device, the sample is fixed by placing it in its place via the handle on the device.

2- Before adding abrasive grit, it should noted that the valve under the sand chamber is in the closed position.

3- Abrasive sand is filled into the hopper.

4- To adjust the revolution speed, firstly press to "Set" button and after "PRST" button.

5- Sample is should by push lever up place it in contact with the disc.

6- For Start to test, should press to "Start" button.

7- When the disc begin rotate, slowly open grit valve.
