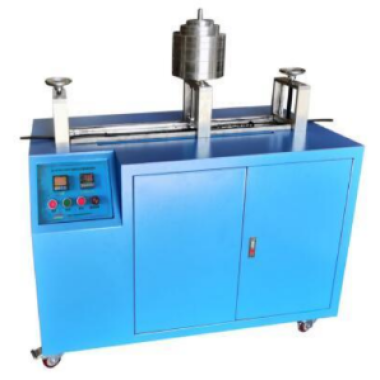

New energy wire and cable extrusion & scraping tester

Product Introduction:The new energy wire and cable extrusion jacket scratching tester is used to tes

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

Content

Product Introduction:

The new energy wire and cable extrusion jacket scratching tester is used to test the scratching resistance of the plastic jacket with an outer diameter of 30mm and above.

Standard:

JB/T10696.6-2007Test methods for mechanical and physical properties of wire and cable Part 6: Extrusion jacket scraping test

GB/T 12706.3-2008:19.17. GB/T 33549. CQC 1103-1105-2015 outer sheath scraping test

Parameters:

1. Angle iron scraper curvature radius:R1.5mm(standard requirements: greater than 1mm, less than 2mm)

2. shaving stroke: {>}600mm

3. grinding speed:(150-300)mm/s adjustable

4. grinding times:9999 times can be set

5. test diameter range:10mm≤D{<}90mm

6. weight weight:1N, 5N, 10N each 1. 20N, 100N each 2. 50N3 (line diameter of 90mm or more optional :50N, 100N each one

7. automatic reversing, scraping speed uniform

8. test environment temperature monitoring: the test environment temperature is not in the range of 20+5℃C, the testing machine can not start

9. Power supply: AC220V 50/60Hz 1KW

Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
