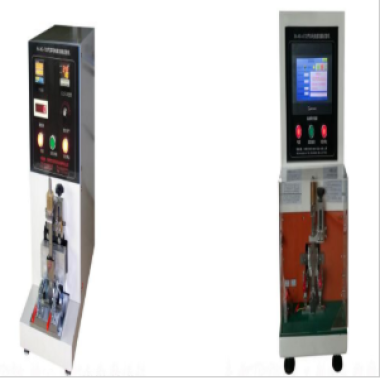

Automobile wire corrugated pipe drag grinding machine

Standards:

ISO 6722. QC/T730. JIS C 3046. JASO D 611. SAEJ1128-2005. JBT 8139.TBT 1484.1-2001 Part1. EN50305. EN50306and other standards

Parameters:

The test stroke is greater than 10mm, the displacement of the scraping needle is 20mm+1mm, and the scraping length is 15.5±1mm

Movement frequency :50——60 cycles/min (touch screen setting)

Counter :6 bits (touch screen setting)

Test times :6 times (touch screen setting)

The minimum distance between the test points and the test point and the sample end is greater than 10mm, and the sample rotation Angle :90

Sample length: about 750mm samples are fixed together on a steel anvil.

Weight: Basic load :4N, plus :5N, 6N, 7N, 8N, 9N, 10N, 11N(weight applied to the scraper)

Function: When the needle wears through the insulation and conductor contact, the equipment will stop

The scraping needle movement according to the "U" shape, to avoid the phenomenon that the unilateral side of the sample is easy to be scratched through.

Needle diameter :0.45mm+0.01mm(spring wire)

Test temperature monitoring function: the test environment temperature is not within the range of 23 ° C+1 ° C required by the test, the testing machine can not start or run automatically stop

Control system: servo motor, touch screen +PLC(imitation Swiss imported model)

Transmission mechanism: imported double slide rail type

Equipped with plexiglass test samples to prevent ambient temperature fluctuations can be affected by the test
