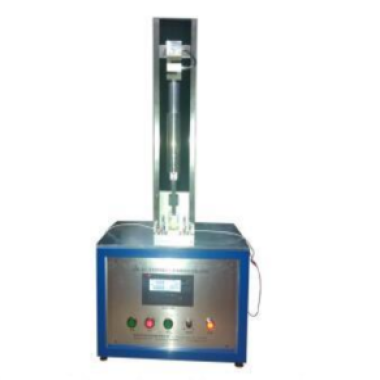

Locomotive wire dynamic cutting through tester

Applicable standards:

Test requirements in EN50305\EN50306:2002

Main functions:

1. Fix the sample on the steel platform, place the indenter with (0.45 steel wire) across the sample, and apply force to the sample in the downward and vertical direction at the acceleration speed of 1N/S until the sample is cut through (through) and record the minimum cutting force at this time.

2. cut Kone LCD digital display or computer software display, the unit of force can be switched (N, Kg, lb)

3. when the sample is cut through, it can automatically maintain the size of the cutting force

Main parameters:

Applied force range :12-20kg/1-200kg

Acceleration speed adjustment mode: potentiometer adjustment/computer software automatic control

Data report: Generates test report files

Power: ordinary speed motor/uniform motor

Sample number:4 pieces

The applied force ranges from 0 to 200N

Acceleration speed :1N/S

Steel rod diameter:0.45mm

Test voltage:24V

Detection action current:5mA

Power:200W

Power supply:220V
