Artificial turf wear tester

An artificial turf wear tester is a device specifically designed to evaluate the wear resistance of artificial turf. It tests the wear performance of artificial turf by simulating friction conditions encountered during actual use.

Applications

1. Assessing Wear Resistance

The artificial turf wear tester simulates real-world friction conditions to test the wear resistance of artificial turf. This helps understand the turf's wear performance under different conditions, providing data support for its performance in practical applications.

2. Quality Control and Inspection

During the production process, this equipment can be used to test whether the artificial turf meets the predetermined wear resistance requirements. This helps ensure the consistency and stability of product quality, reducing return and repair costs caused by quality issues.

3. Product Development and Optimization

Testing with the artificial turf wear tester provides data support for product development and optimization. For example, when developing new materials or processes, this equipment can be used to evaluate the impact of different solutions on wear resistance, thus selecting the best solution.

4. Standard Setting and Verification

This equipment can also be used to develop and verify wear resistance standards for artificial turf. Through the accumulation and analysis of a large amount of test data, more scientific and reasonable wear resistance standards can be established, providing a basis for quality control and inspection in the industry.

Standards

FIFA Quality Programme: Exceeds 2015/2016 handbook requirements for artificial turf abrasion resistance testing

EN 15330-1: European standard for shock absorption and deformation recovery in synthetic sports surfaces

Features

Abrasion System:

Rubber-Coated Discs: 200mm diameter with 60 Shore A hardness.

Particle Rollers: Interchangeable grit inserts (40/60/80 mesh).

Control Panel:

10” HMI touchscreen with pre-loaded FIFA test protocols.

USB/Ethernet ports for PC connectivity and remote diagnostics.

Safety Systems:

Emergency stop with E-Stop loop monitoring.

Overload protection at 110% of rated capacity.

Software Suite:

TurfDur Pro™: Auto-calculates abrasion resistance (FIFA stars) and fiber loss.

Cloud Sport: Remote monitoring for global R&D teams.

Illumination:

Adjustable LED array (3.000–6.500K color temperature).

Anti-glare diffusers for operator comfort.

Technical Parameters

Accessoriess

Standard Kit:

2 × Abrasion discs with rubber coating.

4 × Particle roller inserts (40/60/80 mesh).

Quick-release sample clamps.

Software Add-Ons:

Batch Processor: Queue 24/7 unattended testing.

API Integration: Connect to MATLAB/Python for custom analytics.

Calibration Services:

Annual recalibration with NIST-traceable certificate.

Custom Upgrades:

Climate chamber integration (-20°C to +60°C).

Automated fiber loss measurement system.

Consumables:

10L Replacement abrasive particles.

1L Silicone lubricant for high-cycle testing.

Test Procedures

1. The equipment features an electrophoretic aluminum alloy frame structure, and all components have undergone chrome plating or anodic anti-rust and anti-corrosion treatment, ensuring a beautiful appearance and durability.

2. The test roller loading is achieved using a servo motor and ball screw drive, accurately controlling displacement and time. High-precision pressure and displacement sensors are included for accurate measurement, and a lifting mechanism facilitates sample installation and removal.

3. The entire machine is controlled by a PLC and operated via a microcomputer, making it simple and convenient.

4. System structure

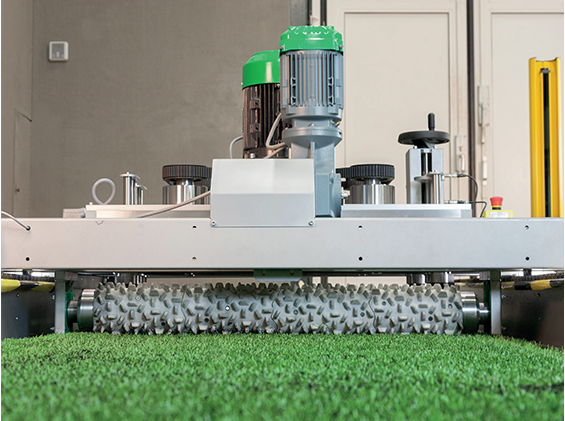

1) Transverse motion system: This system includes two rollers, linear guides, sprockets and chains, gears and racks, a motor, limit switches, a variable frequency drive, and a counter;

2) Longitudinal motion system: This system includes a tray, linear guides, a motor, and a variable frequency drive.
