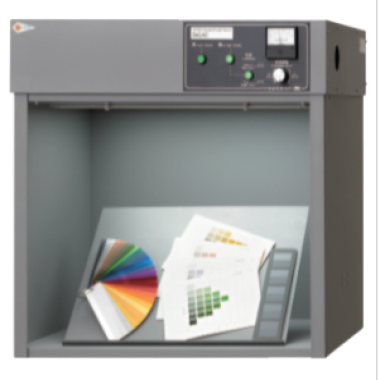

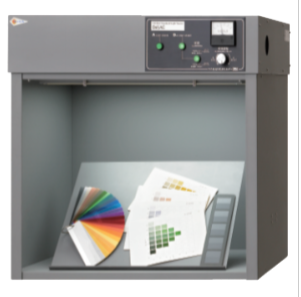

Standard light source sample table

Standards

ISO 3664:2009: Meets international standards for graphic arts and photography view conditions.

DIN 6173-2: European norm for illuminant D50 and D65 spectral requirements.

ANSI CGATS.6: North American color management protocols for print production.

Product Advantages

1. Consistent Color Verification

Multi-Source Illumination: D65 (artificial daylight), D50 (warm daylight), TL84 (retail), CWF (cool white) modes eliminate metamerism risks.

ISO-Certified Lighting: Simulates global retail/commercial lighting conditions.

2. 24/7 Color Accuracy

Critical for Night Shifts: Maintains D65 consistency during off-hour production checks.

30-Minute Warm-Up: Ensures stable CRI ≥95 before critical evaluations.

3. User-Centric Design

Intuitive Controls: Separate switches for each illuminant with auto-countdown timer.

Spacious Work Surface: 1.200mm × 600mm (47” × 24”) for side-by-side sample comparison.

4. Low Maintenance

2.000-Hour Lamp Life: High-efficiency T8 tubes with replaceable European components.

Tool-Free Lamp Replacement: Quick-release access panel for easy servicing.

5. Industrial Durability

Steel Housing: Powder-coated finish resists scratches and chemical spills.

Anti-Glare Diffuser: Eliminates specular reflections on glossy samples.

Product Features

Lighting System:

5 Illuminants: D65 (6.500K), D50 (5.000K), TL84 (4.000K), CWF (4.150K), UV (365nm).

Flicker-Free Output: Electronic ballasts ensure stable CRI ≥95.

Control Panel:

Illuminated switches with status LEDs.

Digital hour counter tracks lamp usage.

Safety Systems:

Overcurrent protection (2A fuse).

Residual current device (RCD) for operator safety.

Ergonomics:

Adjustable height stand (700–1.100mm) for standing/seated use.

Removable center divider for large-format samples.

Maintenance:

Lamps accessible via magnetic front panel.

Washable diffuser panel (IP54-rated).

Accessories & Options

Lamp Kits:

D50/D65/TL84/CWF replacement tubes (18W–58W).

UV-A lamps for fluorescent agent detection.

Calibration Services:

Annual ISO 3664 certification with spectral report.

On-site lamp replacement training.

Safety Upgrades:

Floor-standing base with locking casters.

Anti-fatigue mat for extended use.

Consumables:

10 × Replacement diffuser sheets.

1L Glass cleaner for diffuser maintenance.

Warranty:

12-month manufacturer’s warranty (extendable to 36 months).

Lifetime technical support via global hotline.

Technical Parameters
