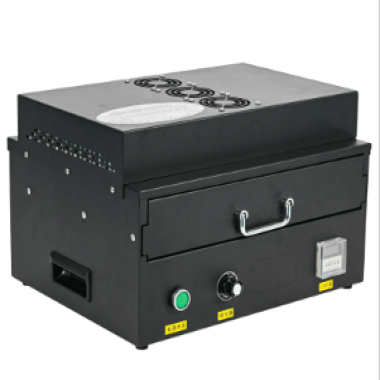

Main uses:In the field of electronics and electrical appliances: in the manufacture of printed circu
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
ISO 10977: Adheres to industrial standards for UV curing of adhesives and coatings.
ASTM E3022: Meets requirements for radiometric measurements in UV curing systems.
IEC 62471: Compliant with photobiological safety regulations for UV exposure.
1. Professional-Grade UV Curing
High-Intensity LEDs: 365nm/385nm/405nm wavelength options for targeted adhesive curing.
Flicker-Free Operation: Stable 50.000+ hour lifespan with <1% output decay.
2. Safety-First Design
Fully Enclosed Chamber: Eliminates UV leakage during operation (UVC <0.1 µW/cm²).
Interlock Safety System: Auto-shutoff when door is opened.
3. Portable Performance
5kg Lightweight Build: Ergonomic handle for benchtop to field use mobility.
110–240V Universal Power: Ready for global lab and production lines.
4. Industrial Durability
All-Metal Housing: Anodized aluminum body resists solvents and impacts.
-20°C to 60°C Operating Range: Stable performance in extreme environments.
5. Energy Efficiency
800W Max Power Consumption: 70% less energy vs. mercury arc lamps.
Instant On/Off: No warm-up/cool-down cycles for rapid workflows.
LED System:
Wavelength Options: 365nm (UVA), 385nm (UVB), 405nm (UVC) selectable.
Uniformity: >90% irradiance homogeneity across 450mm × 400mm work area.
Control Panel:
Digital timer (1–999 seconds) with auto-repeat function.
Adjustable power output (10–100%) for precise dose control.
Safety Systems:
Emergency stop button with E-Stop loop monitoring.
Overheat protection at 60°C with auto-cooling fans.
Ergonomics:
Removable glass window for sample access.
Adjustable shelf height (0–50mm) for 3D objects.
Connectivity:
USB port for firmware updates and remote diagnostics.
RS-232 interface for PLC integration.
Wavelength Kits:
365nm + 385nm dual-band modules.
405nm deep-cure modules for thick adhesives.
Safety Gear:
UV-blocking goggles (OD 5+ at 365nm).
Radiation shielding curtains.
Calibration Services:
Annual NIST-traceable irradiance mapping.
Spectral output verification.
Custom Upgrades:
Nitrogen purge system for oxygen-free curing.
Chiller integration for high-power applications.
Consumables:
10 × Replacement quartz glass windows.
1L UV-cleaner for optics maintenance.
| Specification | Details |
|---|---|
| Work Area | 450mm × 400mm × 150mm (17.7” × 15.7” × 5.9”) |
| Wavelength Options | 365nm/385nm/405nm (selectable) |
| Max. Irradiance | 12.000 mW/cm² (adjustable) |
| Power Supply | 100–240V/50–60Hz (auto-switching) |
| Dimensions (W×D×H) | 520mm × 465mm × 510mm |
| Weight | 5 kg (net) |
| Operating Conditions | 0–45°C, <85% RH (non-condensing) |
