Photo fill light box

Standard

CE & FCC Certified: Meets electromagnetic compatibility and safety standards for EU/US markets.

RoHS Compliant: Lead-free construction for environmentally responsible photography.

IEC 60598-1: Luminaire safety requirements for commercial lighting equipment.

Product Advantages

1. Customizable Illumination

Modular LED Panels: Interchangeable 5.600K (daylight) to 3.200K (tungsten) bi-color modules.

CRI ≥95: True-to-life color rendering for product photography and videography.

2. Versatile Studio Setup

2.2m Adjustable Stands: Collapsible aluminum frame with 1.5–2.2m height adjustment.

Dual Light Box Design: 1.187mm × 688mm (46.7” × 27.1”) illuminated surfaces for 360° coverage.

3. Portable Performance

55kg Total Weight: Split design for easy transport in car trunks or vans.

3-Minute Assembly: Tool-free quick-release clamps for rapid setup.

4. Energy Efficiency

800W Max Power: Equivalent to 4.000W traditional tungsten lighting.

0–100% Dimming: Flicker-free output for 4K/8K video recording.

5. Industrial Durability

Aluminum Alloy Frame: Resists warping up to 50kg payloads.

IP20-Rated Housing: Dust-resistant for studio or location shoots.

Product Features

Lighting System:

Bi-Color LED Panels: 5.600K ±200K/3.200K ±200K adjustable via control box.

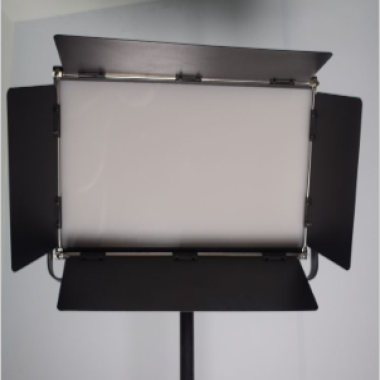

Barn Doors Included: Light shaping accessories for precise spill control.

Control Interface:

4-Channel Dimmer: 0–100% brightness control with memory presets.

DMX512 Compatibility: For integration with professional lighting consoles.

Safety Systems:

Overheat protection at 60°C with auto-shutoff.

Residual current device (RCD) for operator safety.

Mounting Options:

Baby Pin Adapters: Compatible with Bowens/Elinchrom modifiers.

360° Swivel Brackets: Rotate panels for overhead or side lighting.

Connectivity:

2 × 3m (10ft) power cables with locking connectors.

V-Mount battery plate for location shoots (optional).

Accessories & Options

Light Modifiers:

Softboxes (60×60cm, 80×80cm) with grid attachments.

Beauty dishes and snoots for portrait lighting.

Control Upgrades:

Wireless remote control (2.4GHz, 50m range).

Smartphone app for iOS/Android (requires optional module).

Power Solutions:

V-Mount battery plates (14.8V/26V input).

50m (164ft) extension cables for studio setups.

Consumables:

10 × Replacement diffusion panels.

1L Lens cleaning kit (air blower + microfiber cloths).

Warranty:

24-month manufacturer’s warranty (extendable to 60 months).

Lifetime technical support via global hotline.

Technical Parameters
