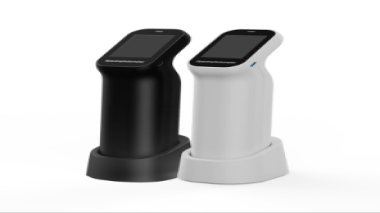

Abundant uses:Color Measurement and Management:The spectrophotometer can be used to measure the surf
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
CIE No.15. ISO 7724-1: Meets international colorimetry and spectral measurement standards.
ASTM E1164. DIN 5033: Compliant with industrial color difference evaluation protocols.
GB/T 3978. GB 2893: Adheres to Chinese national standards for color accuracy.
1. Dual-Mode Precision
CMOS Dual-Path Sensor: Simultaneous SCI/SCE measurement with 0.04 ΔE*ab repeatability.
10nm Optical Resolution: Covers 400–700nm spectrum for fluorescent material analysis.
2. Ergonomic Excellence
410g Ultra-Light Build: Compact design for one-handed operation during prolonged use.
2.8” Touchscreen: Intuitive navigation with real-time pass/fail indicators.
3. Industrial Durability
10-Year LED Lifespan: Withstands 1.2 million+ measurements.
IP54-Rated Housing: Dust/splash-proof for factory floor deployment.
4. Smart Calibration
Auto-Whiteboard Validation: Contact-based calibration with R%≥95% reference tile.
Self-Diagnostics: Error alerts for misalignment or low battery.
5. Connected Workflow
SQCX Software Integration: Generates ISO-compliant reports with SPC statistics.
Bluetooth Printing: Wireless label generation via optional micro-printer.
Optical System:
D/8 Geometry: SCI (specular included) for paint/coating analysis; SCE (specular excluded) for textiles.
400–700nm Full-Spectrum LED: Eliminates spectral gaps in critical wavelengths.
Measurement Modes:
9 Color Spaces: CIE Lab, HunterLab, and Munsell conversion.
21 Color Formulas: ΔE*00. CMC(2:1), and custom tolerance editing.
Connectivity:
USB & Bluetooth: Data transfer to PC/mobile devices.
Cloud Sync: Backup measurements to SQCX cloud (optional).
Safety Systems:
Overcurrent protection for charging circuits.
Auto-shutdown after 10 minutes of inactivity.
Ergonomics:
Adjustable Stand: 0°–90° tilt for horizontal/vertical measurement.
Non-Slip Grip: Textured casing for wet/dry conditions.
Standard Kit:
8mm aperture adapter.
SQCX color management software license.
NIST-traceable calibration certificate.
Optional Upgrades:
Micro Printer: On-site label generation.
Powder Test Kit: For loose pigment analysis.
UV Cure Module: For fluorescent material testing.
Consumables:
10 × Replacement calibration tiles.
1L Optical cleaning solution (isopropyl-based).
Warranty:
24-month manufacturer’s warranty (extendable to 60 months).
Lifetime technical support via global hotline.
| Specification | Details |
|---|---|
| Illumination | D/8 geometry (diffuse/8°) |
| Sensors | CMOS dual-path array |
| Wavelength Range | 400–700nm (10nm intervals) |
| Repeatability | ΔE*ab ≤0.04 (MAV/SCI) |
| Inter-Instrument Agreement | ΔE*ab ≤0.4 (BCRA II tiles) |
| Measurement Time | 1 second |
| Battery Life | 8 hours (8.000 measurements) |
| Dimensions | 94mm × 68mm × 188mm |
| Weight | 410g (without calibration base) |
| Operating Conditions | 0–40°C, <85% RH (non-condensing |
