Electric bicycle lighting device testing machine

An electric bicycle lighting device testing machine is a piece of equipment used to test the lighting devices of electric bicycles, ensuring they meet national standards and safety requirements.

Application

Public, inspection, law, accident investigation, fire emergency lighting, railway, power emergency repair lighting and various outdoor construction operations,

The need of large area and high brightness lighting for maintenance and repair, accident handling and rescue and disaster relief work sites.

Standard

EN 15194 : Cycles — Electrically power assisted cycles (EPAC Bicycles)

ISO 4210: Cycles — Safety requirements for bicycles

UL 2849 :  Standard for Electrical Systems for E-Bikes

ECE R50 StVZO: ECE Regulation No. 50 (Uniform Provisions Concerning the Approval of Motorcycles and Mopeds with regard to Noise) and StVZO (German Road Traffic Licensing Regulations)

Lighting Equipment

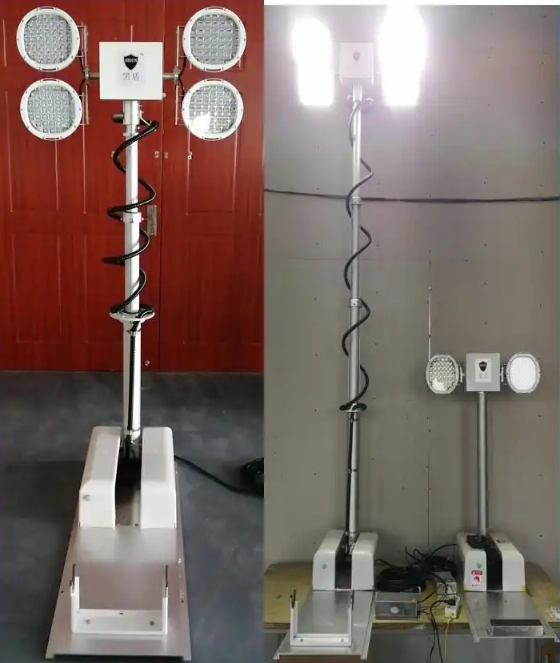

Composed of 2 500WLED lights, the lamp parts are fixed on the lamp pole through the rotating head, and the wired controller is used

Or the wireless remote control will stand the light pole from the roof of the car to operate the 360 degree rotating head for all-round search positioning and lighting functions.

Irradiation range: 4 fixed rods are selected as the lifting adjustment mode, with a maximum height of 3.5 meters; Remote control head can adjust the lighting 360 degrees

The shooting Angle, the floodlight coverage radius reaches 30-100 meters.

Product Advantages

Ensures compliance with critical safety and performance standards for e-bike lighting.

Provides accurate and repeatable measurements of photometric and electrical parameters.

Allows for comprehensive evaluation of light distribution and beam patterns.

Facilitates durability testing under simulated environmental and mechanical stresses.

Supports efficient research and development of innovative and reliable lighting solutions.

Contributes to enhanced rider safety and visibility in various conditions.

Helps in meeting regulatory requirements for market access and product certification.

Parameters

Accessoriess

The main components of the electric bicycle lighting device testing machine include a standard A light source, a receiver, a turntable, a lighting distribution performance testing system, an adjustable tripod stand, a test platform, and chromaticity observation equipment.

Test Procedures

Sample Fixing: Secure the electric bicycle sample onto the test equipment fixture.

Air Source Connection: Connect the air source, connect the switch socket, and start the power control button.

Data Calibration: Enter "Equipment Calibration" to calibrate and set analog parameters such as battery voltage, current, and magnetic powder torque.

Permission Settings: Set user access permissions in "Permission Settings" to ensure that operators have the necessary permissions for settings and editing.

Judgment Specifications: Set the judgment specifications for the test results, including speed, torque, and braking distance.

Historical Data Query: Access the historical data query interface through "Query Historical Data," filter test data by start and end times, and support exporting data to an Excel document.
