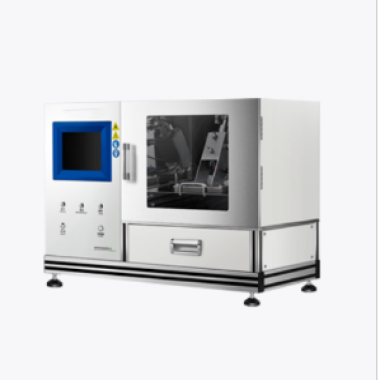

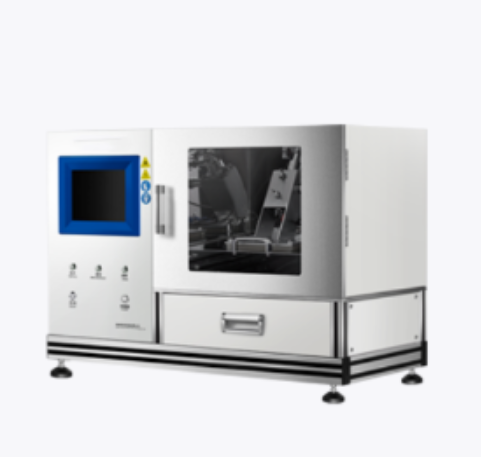

Oxidizing liquid time pressure tester

Product Description

Conforms to UN Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria 11.6.1 Test 1(c)(i): Time/Pressure Test, 12.6.1 Test 2(c)(i): Time/Pressure Test, 23.4.1 Test C.1: Time/Pressure Test, and GB/T 21579-2008 Time/Pressure Test Method for Dangerous Goods.

Standards

GB/T21620、GB/T 21579-2008、NY/T 1860

Product characteristics

1) Embedded processor, Windows CE operating system

2) 8-inch LCD touch screen can display the test status in real time

3) Automatic detection of pressure vessel air tightness (by detecting the initial pressure drop rate)

4) With ignition sound and light alarm function

5) Stainless steel seamless welded inner liner and pressure vessel, pressure sensor with corrosion resistance, high temperature resistance, high pressure resistance

6) Automatic timing and high-precision pressure detection system, real-time detection and display of pressure changes

7) With automatic pressure relief device, after the test, automatically punctured explosion-proof sheet, release pressure

8) Automatically draw the pressure curve

9) With reaction residue collection and anti-splash function to avoid external contamination of the sample

10) Remote ignition to ensure the safety of experimental personnel

11) The test process is fully automated without manual intervention, supporting parameter setting, data storage, viewing reports and other functions

Technical parameters
