The Bone Cement Torsion Testing Machine is mainly used in the biomechanics field for torsional perfo
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

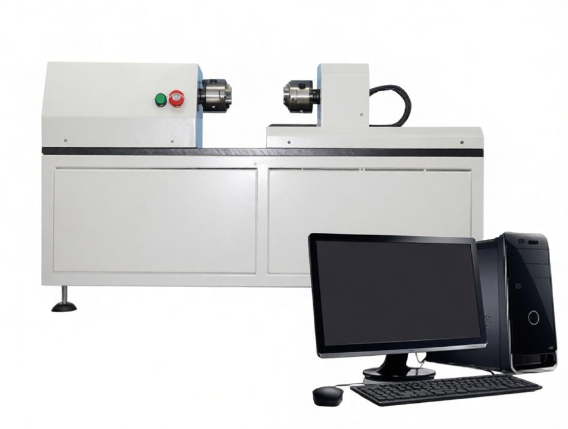

The Bone Cement Torsion Testing Machine is mainly used in the biomechanics field for torsional performance testing of bone cement, bone screws, and other medical implants. It can evaluate torsional fracture force, torsional strength, torque load, fracture strength, and torsional force.
(1) Bone cement
(2) Bone screws
(3) Surgical implants
(4) Medical implants
(5) Torsional fracture testing
(6) Torsional strength testing
(7) Torque load testing
GB/T 2611 — General Technical Requirements for Testing Machines
| Parameter | Specification |
|---|---|
| Maximum Torque | 1 / 5 / 10 / 20 / 50 / 100 N·m, customizable |
| Testing Machine Grade | Class 0.5 / Class 1 |
| Torque Measurement Range | 1%FS–100%FS |
| Torque Resolution | 0.001–0.01 N·m |
| Torque Loading Direction | Forward and reverse |
| Torsion Speed | 0.1–720°/min, customizable |
| Torque Indication Relative Error | <±0.5% / <±1% |
| Angular Measurement Range | 0–±99999.99° |
| Angular Indication Relative Error | <±0.5% |
| Torque Repeatability Error | <0.5% |
| Test Stroke | 300 mm, customizable |
| Equipment Weight | Approx. 150 kg |
| Power Supply | 220 V, 50 Hz |
| Appearance | Complies with GB/T 2611 |
(1) Medical Implant Testing – Designed for torsional performance evaluation of bone cement, bone screws, and other surgical implants.
(2) Multiple Test Applications – Supports torsional fracture, torsional strength, and torque load testing.
(3) Bidirectional Loading – Supports testing in both forward and reverse directions.
(4) Customizable Configuration – Torque capacity and test stroke can be customized according to specimen requirements.
(5) Wide Testing Range – Suitable for different medical implant materials and component sizes.
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
