CFR 1633 Large Scale Mattress Fire Tester

Application:

The machine is used to evaluate the fire progression and energy output in a mattress or a mattress set when subjected to an ignition source approximate to burning bed clothes.

16 CFR Part 1633 is a federal standard in USA and all manufactured or imported mattresses and mattress sets must meet this standard.

Standard：

16 CFR Part 1633: A U.S. federal standard mandating full-scale fire resistance tests for mattresses to limit fire hazards in residential settings.

TB 603: A California technical bulletin specifying open-flame test methods for upholstered furniture, including sofas, to ensure compliance with state-level flammability regulations.

16 CFR 1633 Mattress, mattress pads and mattresses flammability test - Relative Standard

16 CFR SECTION 1632 - STANDARD FOR FLAMMING BED AND BED PADS

TB 106 Requirements, Testing Procedure and Apparatus for Testing the Combustion Resistance of a Combustion or Mattress Pad from a Non-Smoking Cigarette

TB 121 Flammability Test Procedure for Mattresses Used in High Risk Enterprises

TB 129 Flammability Test Procedure on Cushions Used in Public Buildings

NFPA 267 Mattress and bedding fire characteristics exposed to flames

ASTM E1590 Standard test method for mattress fire test (open flame)

Test Procedure and Apparatus for Open Flame Resistance of TB 604 Filled Bedspread

Product Advantages：

Regulatory Compliance: Engineered to satisfy 16 CFR Part 1633 (flammability of mattresses) and TB 603 (technical bulletin for furniture), reducing barriers to U.S. market entry.

Advanced Combustion Analysis: Precision oxycalorimeter and gas analysis station provide accurate heat release and toxic gas emission data, critical for safety certification.

Versatile Testing Configurations: Includes modular burner devices for mattresses, sofas, and soft chairs, accommodating diverse furniture types in a single platform.

Eco-Friendly Operation: Integrated exhaust gas processing system ensures emissions meet environmental regulations, minimizing environmental impact.

User-Centric Design: Intuitive gas flow control and automated data logging streamline testing workflows, saving time and reducing operator error.

Product Features：

Large-Scale Combustion Chamber:

Dimensions: 3048 × 3658 × 2438 mm (L×W×H) with a 965 × 2032 mm door for accommodating full-size mattresses and furniture.

Gas-Collection Hood: Complies with 16 CFR Part 1633 clauses 7, Figure 1, and Figure 2 for standardized test conditions.Precision Measurement Systems:

CO₂: 0–6.0% range, ±0.1% accuracy.

CO: 0–1.0% range, ±0.02% accuracy.

Oxycalorimeter: Measures heat release rates from 75 kW to 200 kW with ≤2 kW accuracy.

Gas Analysis Station:Modular Burner Kit:

Includes dedicated burners for mattresses, sofas, and soft chairs (1 set each), adhering to 16 CFR Part 1633 clauses 7, Figures 3–6.Safety & Emissions Control:

Exhaust Processing: Neutralizes combustion byproducts to meet direct emission standards.

Propane Supply System: Gas flow accuracy ≤0.1 L/min (12.9 L/min flow rate) and ≤0.05 L/min (6.6 L/min flow rate).

Technical Parameters：

FAQ：

Q：What is the 16 CFR 1632 & 16 CFR1633 test?

16 CFR 1632 is a Mattresses and mattress pads (Cigarette test)

Scope:

All mattresses & All mattress pads

Criteria:

- Six mattresses or mattress pads are required if only one side can be tested. Test each of the six surfaces with at least 18 lighted cigarettes.

- The char length is not more than 2 inches (5.1 cm) in any direction from the nearest point of the cigarette.

Test procedure:

- Washing and Drying Ten Times Before Testing for Chemical Retardant Pad(AATCC 124-82 )

- Conditioning (T: ≥65ºF, H: <55% at least 48h )

- Bare Mattress Test

- Two-sheet Tests

Q:16 CFR 1633 is a Mattresses and Mattress/ Foundation Sets (open flame)

Scope:

- All mattress sets, manufactured, imported or renovated on or after the effective date of this standard are subject to the requirements of the standard.

Definition:

- Mattress means a resilient material or combination of materials enclosed by a ticking (used alone or in combination with other products) intended or promoted for sleeping upon. Such as adult mattresses, youth mattresses, crib mattresses (including portable crib mattresses), futons, flip chairs without a permanent back or arms, sleeper chairs, and water beds or air mattresses etc.

- Mattress set means either a mattress and foundation labeled by the manufacturer for sale as a set, or a mattress labeled by the manufacturer for sale without any foundation.

Test method:

- All tests must be conducted on specimens that are no smaller than a twin size, unless the largest size mattress set produced is smaller than a twin size, in which case the largest size must be tested.。

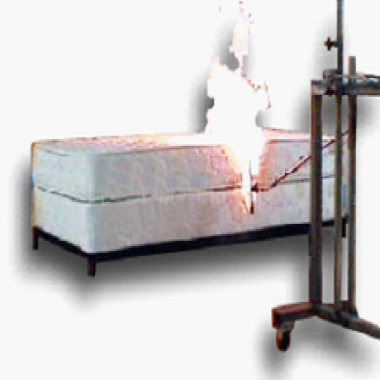

- The flaming ignition source was a pair of T-shaped propane burners. The sample exposed 70 seconds for the top burner and 50 seconds for the side burner.

- Test period: 30 min

Test criteria:

- The peak rate of heat release shall not exceed 200 kilowatts ("kW") at any time within the 30 minute test; and

- The total heat release shall not exceed 15 megajoules ("MJ") for the first 10 minutes of the test.

- 16CFR1633 Fail Photo

In 3 to 5 minutes >2,000 kW
