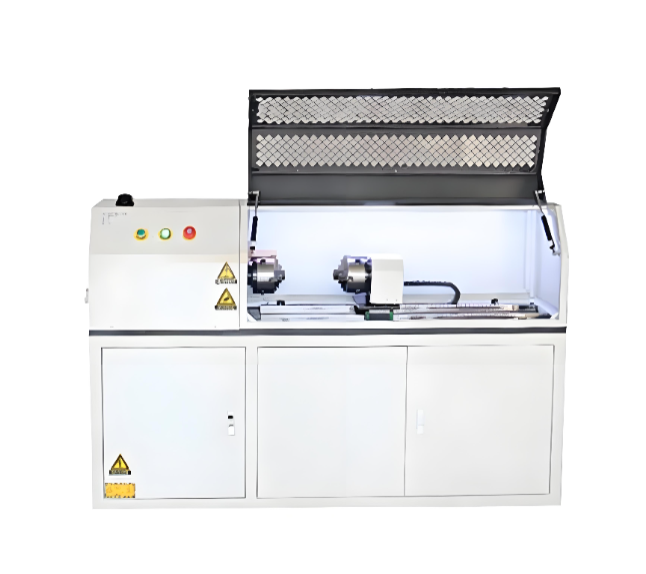

The 3D Printing Material Torsion Testing Machine is specially developed for PLA, resin, and metal pr
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com
The 3D Printing Material Torsion Testing Machine is specially developed for PLA, resin, and metal printed specimens, and can measure mechanical properties such as torsional strength and fracture torque. It adopts precise servo loading technology to collect torque and torsion angle data in real time, automatically generate curves, and provide test reports. The equipment is easy to operate and is compatible with various printed specimens, meeting the testing requirements of new material development, product quality inspection, and laboratory testing in universities and research institutions.
ASTM D1043 — Standard Test Method for Stiffness Properties of Plastics as a Function of Temperature by Torsion Test
ASTM D790 — Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials
ISO 22088-3 — Plastics — Determination of Resistance to Environmental Stress Cracking — Bent Strip Method (Related material evaluation reference)
ISO 527 — Plastics — Determination of Tensile Properties (Related 3D printing material mechanical testing reference)
GB/T 10128 — Metallic Materials — Torsion Test Method at Room Temperature
GB/T 2611 — General Requirements for Testing Machines
Used for torsional strength, fracture torque, torsion angle, and mechanical performance testing of 3D printed materials such as PLA, resin, metal printing materials, and composite printed specimens. It is widely applied in 3D printing material research, product quality inspection, new material development, universities, and research laboratories.
| Item | Technical Parameters |
|---|---|
| Test Torque | 10 N·m, 100 N·m, 200 N·m, 300 N·m, 500 N·m, 1000 N·m, 2000 N·m, 5000 N·m (Customizable) |
| Test Stroke | 300 mm / 500 mm (Customizable) |
| Testing Machine Accuracy Grade | Grade 0.5 / Grade 1 |
| Test Force Resolution | 0.01 N·m / 0.1 N·m / 1 N·m |
| Torque Resolution | 1 / ±300000 |
| Torque Measurement Range | 1%–100% Full Scale |
| Minimum Torque Reading Value | 0.01 N·m / 0.1 N·m |
| Angle Resolution | 0.01° |
| Maximum Torsion Angle | 99.999° |
| Test Speed | 0.1°–720°/min (Stepless Speed Adjustment) |
| Relative Error of Angle Indication | < ±0.5% |
| Repeatability Error of Angle Indication | <0.5% |
| Relative Error of Force Indication | < ±0.5% |
| Repeatability Error of Force Indication | <0.5% |
| Test Speed Accuracy | Better than ±1% of Indicated Value |
| Loading Direction | Bidirectional Loading |
| Power Supply | AC 220 V, 50 Hz |
Designed for mechanical performance testing of various 3D printed specimens.
High-precision servo loading system for stable torque control.
Real-time acquisition of torque and torsion angle data.
Automatic generation of torque–angle curves and test reports.
Supports different types and sizes of printed specimens.
Simple operation with reliable testing performance.
Suitable for material research, quality control, and laboratory testing.
