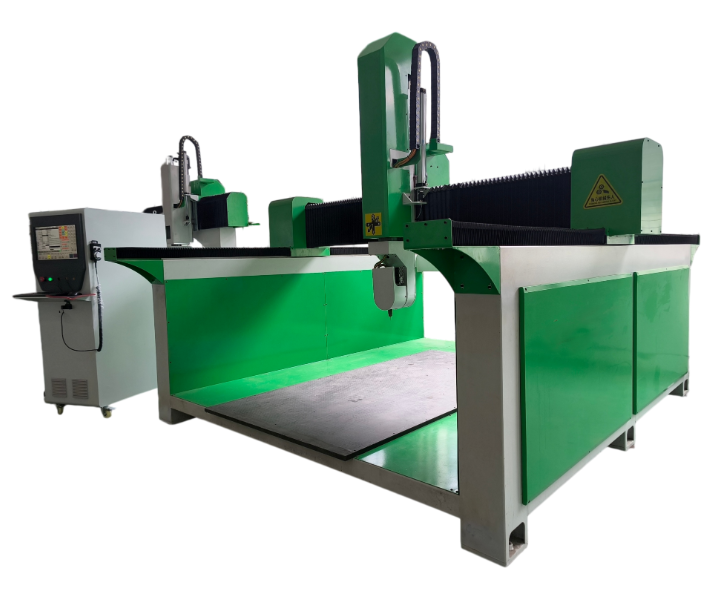

The Gantry Six-Axis Oscillating Knife Cutting Machine is a high-end CNC system integrating a rigid gantry structure with a six-axis motion control platform. By combining multi-axis coordinated movement with high-frequency oscillating knife cutting technology, the system enables high-precision processing of complex 3D surfaces and large-format flexible materials.
The symmetrical gantry design provides excellent structural rigidity and deformation resistance, ensuring stable operation and sub-millimeter positioning accuracy under high-speed cutting conditions. It is widely used in advanced manufacturing industries requiring high efficiency, precision, and complex geometry processing.

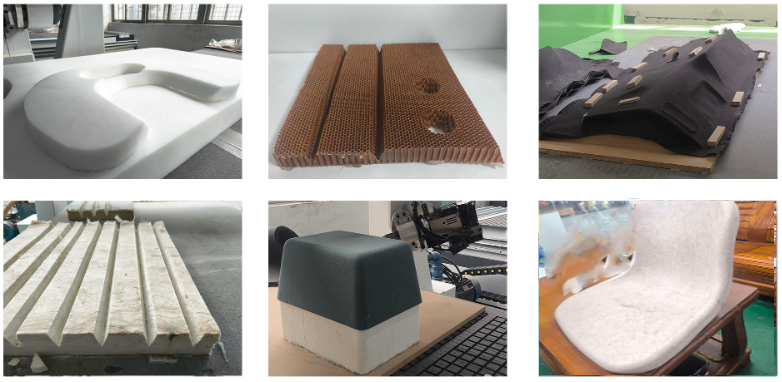

(1) Advertising & Packaging Industry
Used for cutting large-format display stands, multi-layer composite packaging structures, POP displays, and irregular packaging boxes.
(2) Automotive Interior Manufacturing
Applicable to seat covers, floor mats, dashboards, insulation layers, leather, and foam components with complex 3D contours.

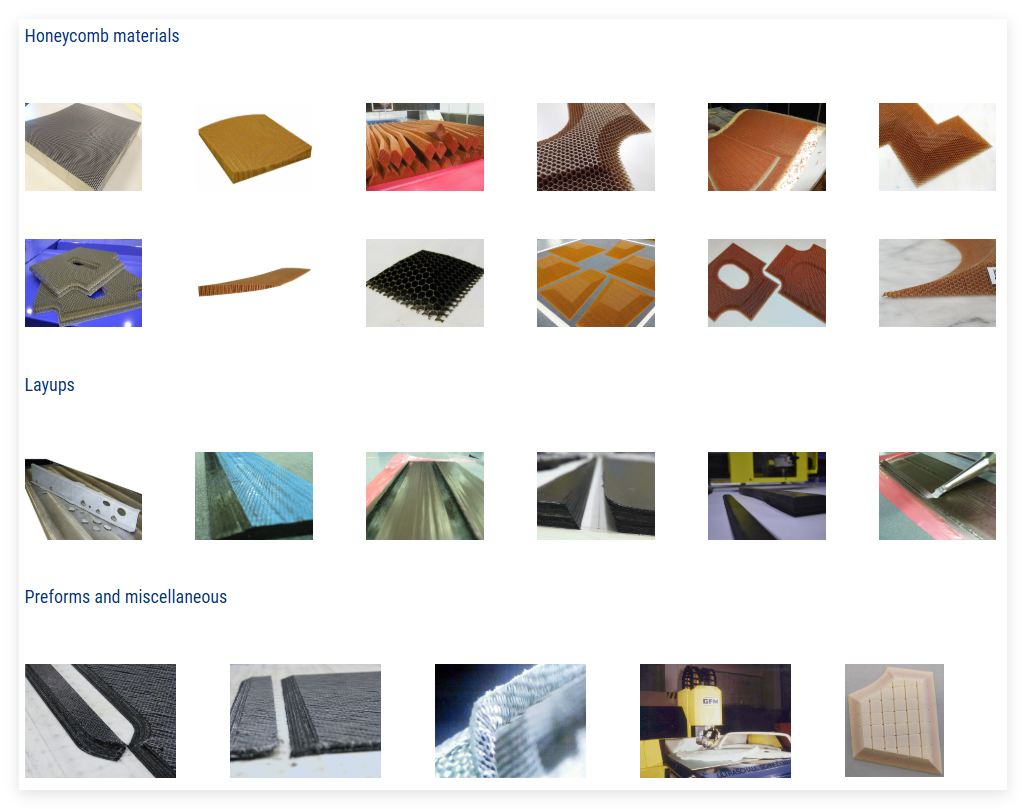

(3) Aerospace Industry
Used for high-precision cutting of composite structural parts such as carbon fiber panels and honeycomb sandwich structures.
(4) Furniture & Upholstery Industry
Suitable for sofa components, foam padding, fabric-based structures, and customized soft furniture parts.
(5) Industrial Flexible Materials Processing
Ideal for cutting EVA, PVC, PE foam, felt, corrugated paper, stone wool, leather, and other composite or non-metal materials.
| Item | Specification |
|---|---|
| Axis System | Six-axis coordinated motion |
| Processing Mode | 2D + 3D surface cutting |
| Servo System | Bus-type absolute servo motors |
| Cutting Tools | Oscillating knife, drag knife, half-cut blade, rotary knife, pneumatic knife, milling cutter, V-groove knife, camera, drawing pen, pressure wheel |
| Working Sizes | 1200×1200 / 1300×1800 / 2000×3000 / 2000×4000 mm |
| Cutting Thickness | ≤150 mm (customizable) |
| Cutting Speed | ≤1800 mm/s |
| Cutting Accuracy | ±0.1 mm (material dependent) |
| Repeatability | ≤0.05 mm |
| Cutting Height | ≥100 mm |
| Material Fixing | Vacuum adsorption system |
| Machine Structure | Gantry-type high-rigidity frame |
| Transmission System | Linear guide + rack & pinion + ball screw |
| Communication Interface | Ethernet (supports database connection) |
| Supported Formats | PLT, DXF, SVG, PDF, AI, HPGL, NC, XML, etc. |
| Power Supply | AC 220V / 380V ±10%, 50Hz |
| Total Power | 9.5 kW |
| Air Pump Power | 3–9 kW (typical 7.5 kW) |
(1) Six-axis coordinated motion enables true 3D surface cutting capability
(2) High-rigidity gantry structure ensures stable operation at high speed
(3) Oscillating knife system reduces cutting resistance by up to 90% for flexible materials
(4) Multi-tool compatibility supports various processing requirements
(5) Vacuum adsorption platform ensures stable fixation of flexible and thin materials
(6) File-based processing eliminates the need for complex programming
(7) High precision and high efficiency suitable for both mass production and customization
(8) Industrial Ethernet interface enables integration with MES/ERP systems
(9) Broad material compatibility including composites and soft materials
(10) Modular design for easy maintenance and system expansion

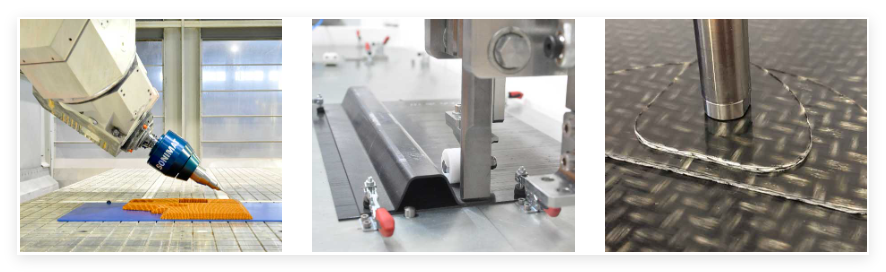

(1) 3D curved surface cutting
(2) Multi-angle planar cutting
(3) Hollowing and engraving
(4) Drilling and inclined hole processing
(5) Irregular contour cutting
(6) Prototype and small-batch production
(1) Gantry six-axis CNC mainframe
(2) High-precision servo drive system
(3) Multi-functional cutting tool set
(4) Vacuum adsorption worktable
(5) Industrial control system with software platform
(6) Ethernet communication module
(7) Auxiliary pneumatic system
(1) Regular lubrication of guide rails and ball screws
(2) Cleaning of vacuum adsorption platform
(3) Servo system performance inspection
(4) Tool calibration and alignment checks
(5) Air system pressure and pump maintenance
The Gantry Six-Axis Oscillating Knife Cutting Machine integrates high-rigidity structural engineering with advanced multi-axis motion control, enabling precise processing of complex 3D geometries and flexible composite materials. It is a core equipment solution for modern intelligent manufacturing in automotive, aerospace, packaging, and industrial fabrication sectors.
1. What is this machine?
It is a CNC cutting system combining a gantry structure with a six-axis motion platform for high-precision material processing.
2. What is it used for?
It is used for cutting automotive interiors, aerospace composites, packaging structures, and flexible industrial materials.
3. What is its working principle?
It uses coordinated six-axis motion combined with high-frequency oscillating knife cutting to process complex geometries.
4. Why is it important?
It enables one-step forming of complex 3D parts, improving efficiency while reducing manual labor and production cost.
5. Which industries is it suitable for?
Automotive manufacturing, aerospace engineering, packaging industry, furniture production, and composite material processing.
