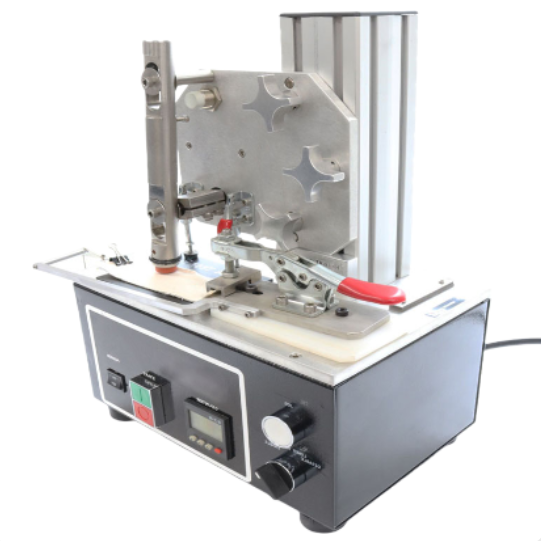

Finger Tip Abrasion Tester

The Finger Tip Abrasion Tester is designed to simulate human fingertip contact on a test specimen by applying a defined load, stroke, and speed. It evaluates the abrasion resistance and durability of surfaces subjected to frequent tactile interaction, such as control panels, touch surfaces, switches, and coatings.

Application

The applied load is set using dead weights, and the scrub (abrading) distance is adjustable from 1 to 4 mm, allowing precise adaptation to different test materials and geometries. This tester supports a wide range of applications, including mechanical abrasion and chemo-mechanical testing when liquids such as artificial sweat, hydraulic oil, or cleaning solutions are applied to the test fabric.

Standard

(1) IEC 68-2-70 – Mechanical durability of materials via fingertip/hand simulation

(2) GB/T 2423 series – Environmental testing of electrical and mechanical durability

(3) IEC 60068-2-70 – Fingertip/hand friction durability testing

(4) IEC 60068-2-72 – Surface wear and operational lifetime testing of materials

(5) ISO 11998 – Coating scrub and abrasion resistance methods

(6) ISO 2813 – Surface state and gloss evaluation methods

Technical Specifications

Features

Realistic Human Contact Simulation: Accurately replicates fingertip abrasion under controlled load and stroke conditions.

Adjustable Parameters: Easily modify test load and stroke to suit different surface materials and textures.

Chemo-Mechanical Capability: Enables testing with liquids such as sweat or cleaning agents for enhanced realism.

Durable & Reliable Design: Built from precision aluminum and stainless steel components.

User-Friendly Controls: Simple setup with pre-set counter and intuitive adjustments.

Comprehensive Documentation: Supplied with operation manual, maintenance schedule, and replacement parts list.

Test Procedures

Measure and record specimen dimensions and thickness.

Secure the sample in the fixture and align properly.

Adjust fingertip mechanism height according to specimen thickness.

Install friction pad or chemical carrier.

Set load, friction stroke, and cycle count.

Start the device and monitor operation.

When the set cycle count is reached, the device automatically stops.

Remove the sample and evaluate surface appearance or performance changes.

Record and organize test results.

Maintenance Information

Keep fingertip heads and clamps clean to avoid contamination.

Inspect moving parts and mechanism for wear regularly.

Replace silicone fingertips or friction pads when worn.

Check and calibrate load weights and counter periodically.

Store in a clean, dry environment to prevent corrosion or damage.

FAQ

1.What is this product?

It is a fingertip abrasion tester designed to evaluate the wear resistance and surface durability of materials under repeated human-finger contact.

2.What is this product used for?

You use it to test consumer electronics, automotive interiors, appliances, medical devices, and industrial equipment surfaces for abrasion and surface integrity.

3.How does this product work?

The fingertip head repeatedly rubs against the material surface under a controlled load, stroke, and speed. Chemical-mechanical tests add liquid media to simulate real-life conditions.

4.Why is this product important?

It ensures materials and coatings maintain appearance, functionality, and surface integrity under prolonged use, helping improve product durability and reliability.

5.Which industries is this product suitable for?

Electronics, automotive, household appliances, medical devices, and industrial equipment manufacturers, as well as R&D and quality control labs.
