1. Function and ApplicationThe Wyzenbeek Abrasion Tester is a four-station oscillatory abrasion
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

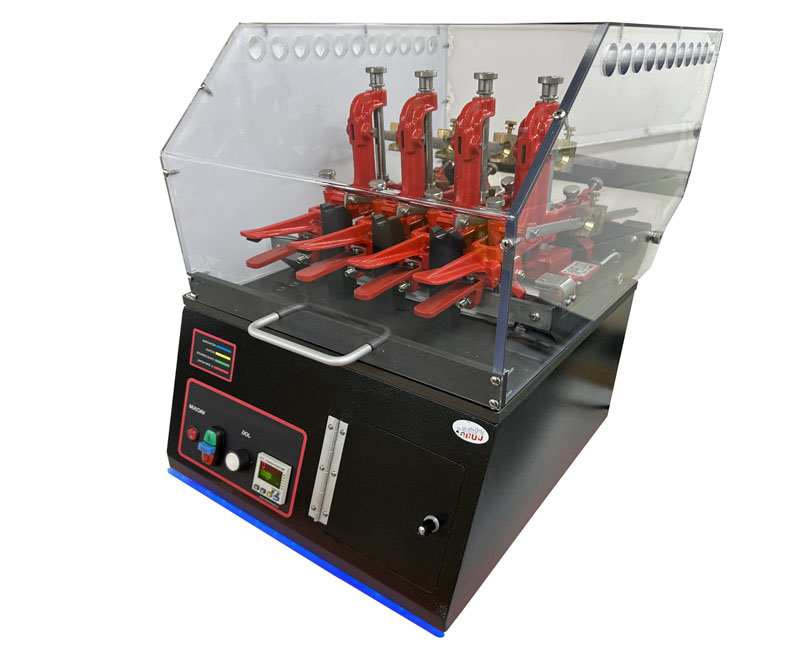

The Wyzenbeek Abrasion Tester is a four-station oscillatory abrasion tester designed to determine the abrasion resistance of textiles, vinyl, leather, stitched seams, and other surface materials. Each station holds a specimen taut and uses contoured foam rubber pads to apply consistent down pressure against an oscillating drum. The drum, covered with cotton duck fabric or wire mesh screen, abrades the specimen for a specified number of cycles under controlled conditions.
This CE-compliant version is engineered to meet international safety and electrical standards, making it ideal for both industrial and laboratory environments.
| Standard Code | Description |
|---|---|
| ASTM D3597 | Abrasion resistance of woven upholstery fabrics |
| ASTM D4157 | Abrasion resistance of textile fabrics (Wyzenbeek method) |
| CE Compliant | Conforms to European safety and electrical standards |
| CFFA-1A | Coated Fabric Testing |
| FED-STD-191/5304 | Fabric abrasion resistance test |
| GM 2756M | Automotive interior abrasion test |
| LP-463KB-06-01 / LP-463KC-04-01 | OEM textile and coated fabric test methods |
| SAE J948 / SAE J1530 | Automotive interior material durability |
| Toyota TSL 5101G 3.9.4 | Textile material abrasion test |
| Feature | Specification |
|---|---|
| Number of Stations | 4 independent test stations |
| Specimen Type | Fabric, leather, vinyl, stitched seams, coated textiles |
| Abradant | AATCC #10 cotton duck fabric or wire mesh screen |
| Stroke Type | Oscillatory motion |
| Speed Control | Adjustable jog and test speed controls |
| Counter System | Programmable count-up controller with automatic stop |
| Safety Features | Double-acting lid interlock, front door interlock, vented protective cover |
| Bearing System | THK precision linear bearings |
| Vacuum System | Integrated air vacuum for lint and debris collection |
| Cooling System | Fan-cooled base enclosure to prevent heat build-up |
| Construction | Solid aluminum and stainless steel mechanical components |
| Finish | Durable powder coat and anodized aluminum |
| Drive Mechanism | Needle-bearing drive with ball-bearing drum shaft |
| Motor Type | High-quality brushless electric motor |
| Power Supply | 110 V / 220 V, 50/60 Hz (to be specified at order) |
| Warranty | 1-year manufacturer’s warranty |
| Parameter | Description |
|---|---|
| Specimen Orientation | Cut from both warp and weft directions |
| Abradant Fabric | AATCC #10 cotton duck or wire mesh |
| Test Setup | Specimen held taut under foam pad pressure; abradant affixed to oscillating drum |
| Test Endpoint | Two yarn breaks, visible wear, or 100,000 double rubs |
| Inspection Interval | Every 5,000 double rubs |
| Reporting | Results reported in 5,000 double rub increments |
| Purpose | Determines abrasion resistance and surface durability under simulated wear conditions |
Four independent stations for simultaneous multi-sample testing.
Individual tension and pressure adjustment per station.
CE-compliant safety system with dual interlocks.
Air vacuum system for clean and efficient operation.
Precision engineering ensures repeatable, reliable results.
Compatible with global OEM textile standards.
Quiet, stable performance with brushless motor drive.
Backed by a full 1-year manufacturer’s warranty.
