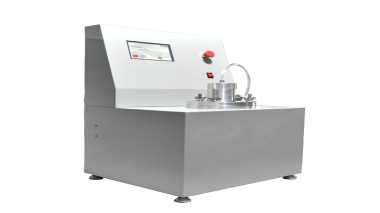

Medical Face Mask Differential Pressure Tester

The Medical Face Mask Differential Pressure Tester, also known as the Mask Breathability Tester, is designed to evaluate the breathability of medical face mask materials. The instrument measures the differential pressure (ΔP) required to draw air through a defined surface area at a constant airflow rate. By providing controlled suction through the sample, the tester accurately determines the air exchange pressure and comfort performance of mask materials, which is essential for medical mask quality assessment.

Application

The Medical Face Mask Differential Pressure Tester is applicable to breathability evaluation across the following industries and products:

(1) Medical and Healthcare Industry: surgical masks, medical face masks, N95/FFP masks, disposable masks — evaluation of breathability and air exchange resistance

(2) Protective Clothing Industry: mask-integrated protective garments, isolation gowns with mask functionality — assessment of airflow and wearer comfort

(3) Textile Industry: nonwoven fabrics, filter fabrics, coated fabrics — air permeability and differential pressure testing

(4) Research and Development: development of new mask materials, optimization of air permeability and comfort, comparative studies

(5) Quality Control: production batch verification, mask material compliance testing for breathability standards

(6) Third-Party Testing Laboratories: certification testing, laboratory evaluation of mask differential pressure and comfort properties

The instrument is widely used for product development, quality control, R&D, and laboratory testing.

Standards

The instrument complies with and can be applied to the following standards (including but not limited to):

(1) YY 0469-2011 – Technical Requirements for Medical Surgical Masks

(2) YY/T 0969-2013 – Medical Face Masks — Air Permeability and Breathability Testing

(3) EN 14683:2014, Annex C – Medical Face Masks — Requirements and Test Methods (Differential Pressure)

(4) ASTM F2100 – Standard Specification for Performance of Materials Used in Medical Face Masks

Features

(1) Suction air source, not limited by the test site space

(2) High-precision differential pressure sensor with digital display of ΔP across the sample

(3) Special sample holder ensures firm positioning of the mask material

(4) Automatic measurement of air exchange pressure and evaluation of material comfort

(5) Compact and easy-to-operate design suitable for laboratory and production environments

Technical Parameters

Accessories

Main test unit with suction air source

Differential pressure sensor

Sample holders and clamps

Digital display controller

Power cable

Operation manual

Calibration certificate

Test Procedures

(1) Prepare the mask or material sample according to the standard

(2) Mount the sample firmly in the sample holder

(3) Set the airflow rate and power on the instrument

(4) Start the measurement to obtain differential pressure (ΔP)

(5) Record results and evaluate breathability and material comfort

(6) Repeat tests for multiple specimens or different material types

(7) Clean the sample holder and sensor after testing

Maintenance Information

(1) Clean sample holders and airflow channels regularly

(2) Verify calibration of the differential pressure sensor periodically

(3) Inspect suction system and airflow components for proper operation

(4) Keep the instrument in a clean, dry laboratory environment

(5) Maintain operation manual and calibration documentation for compliance purposes

FAQ

1.What is a Medical Face Mask Differential Pressure Tester?

A Medical Face Mask Differential Pressure Tester is a specialized device used to measure the resistance of medical face masks to airflow. This testing is crucial in evaluating how effectively a mask can provide protection while allowing a comfortable flow of air for the wearer. The differential pressure is calculated by measuring the pressure drop across the mask material when a certain airflow rate is applied.

2.Why is differential pressure important for medical masks?

Differential pressure is an essential parameter in determining the breathability of medical masks. A lower differential pressure indicates that it's easier for the wearer to breathe, while a higher differential pressure may signify that the mask is too restrictive.

3.How is the differential pressure of a mask measured?

The differential pressure of a mask is measured by placing the mask between two chambers, one exposed to ambient air and the other drawing air through the mask. The tester calculates the pressure difference between these two chambers at a defined airflow rate, typically in liters per minute (L/min). This test helps ensure that the mask meets specific regulatory standards for breathability.

4.What standards apply to medical face masks regarding differential pressure?

Medical face masks must adhere to specific standards that dictate acceptable levels of differential pressure. In many regions, organizations like ASTM International or ISO set these standards. For instance, ASTM F2100 specifies performance levels for masks, which include tests for differential pressure to help ensure they are suitable for medical use.

5.Who should use a Medical Face Mask Differential Pressure Tester?

A Medical Face Mask Differential Pressure Tester is primarily used by manufacturers, quality control laboratories, and regulatory bodies to assess the performance of medical masks. It is also utilized by research institutions focused on developing new mask technologies or improving existing designs to ensure they meet safety and efficacy standards required in medical environments.
