Product informationHeel continuous impact test machine is used to determine the endurance of he
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

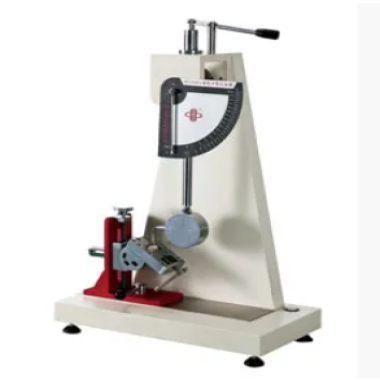

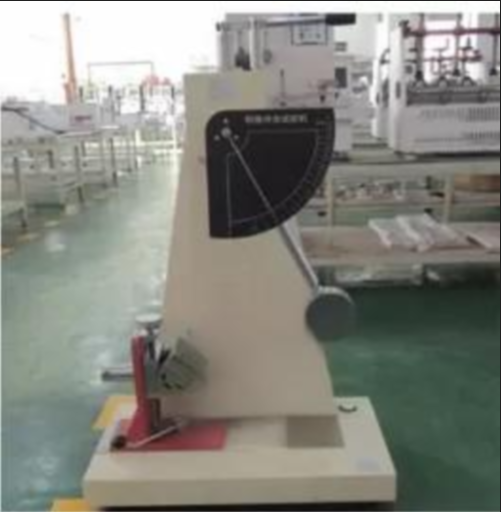

Heel continuous impact test machine is used to determine the endurance of heels of ladies’ shoe to receive the occasional
heavy blows during wear. A heel clamped with the tip uppermost and the stem approximately vertical is subjected to
repeated blows by a pendulum striker. The energy of the blows increases successively until the heel fails.
| Capacity | 0~18.3J(13.5ft-lb ),minimum reading 0.68J(0.5ft-lb ) |
| Horizontally Holding Moment of Pendutum | 17.3N~m(12.7ft-lb ) |
| Adjustable Range of Base Clamp | (H )~25mm,angle 0~45degree |
| Dimension | 65 ×41×115cm |
| Weight | 100kg |
| Standards | BS-5131 ISO 19953 QB/T 2863 SATRA TM20 |
