Detailed Product DescriptionTest Capacity:50N • MPower Resolution:1 / 50.000Control System:PLC
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
| Test Capacity: | 50N • M | Power Resolution: | 1 / 50.000 |
|---|---|---|---|
| Control System: | PLC Control | Heel Lifting Angle: | 25 ± 0.5 ° (0 ~ 40 ° Can Be Set) |
| Torsion Angle: | ~ ± 40 ° Can Be Set | Angle Resolution: | 0.1 ° |
| Speed: | 0 ~ 5rad / Min Can Be Set | Volume: | 1360 × 440 × 900mm |
| Weigh: | 65kg | Power Supply: | 220V 50Hz |
| Highlight: | Whole Shoes Torsion Testing MachineFootwear Torsion Testing Machine | ||

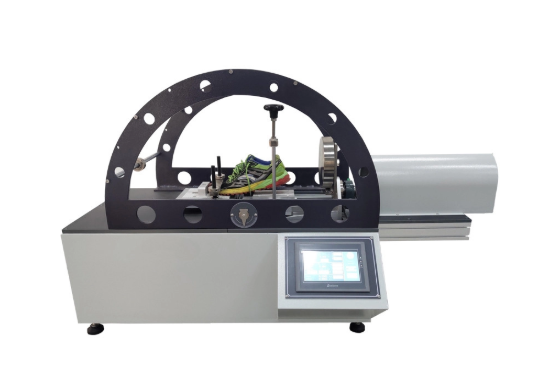

This machine is mainly used to test all kinds of torsional strength tests of finished shoes.
Fix the sole on the test platform, adjust the position of the platform, use manual positioning to lift the shoe to a certain angle, and then twist the shoe to test the maximum torque experienced by the shoe during the test again.
GB/T 32024-2015.
Test capacity | 50N • m |
Resolution | 1 / 50.000 |
Control system | PLC control |
Heel lifting angle | 25 ± 0.5 ° (0 ~ 40 ° can be set) |
Torsion angle | 0 ~ ± 40 ° can be set |
Angle resolution | 0.1 ° |
Speed | 0 ~ 5rad / min can be set |
Volume | 1360 × 440 × 900mm |
Weight | 65kg |
Power supply | 220V 50Hz |
