Standards compliantGB20096-2006Technical Parameters Roller diameter Ф700mm, length 360mm T
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
GB20096-2006
| Roller diameter | Ф700mm, length 360mm |
| The touch screen displays | speed and time |
| Speed | 0.5m/s |
| Block height | class A 15mm, class B 10mm, single row 12.5mm |
| Number of impact blocks | 12 |
| Load Weight | 60kg for class A and 40kg for class B |
| Motor power | 3kw |
| Machine size(L×W×H) | (1800X580X1600) mm |
| Weight | 280kg |
| Power supply | AC 220V 50HZ |

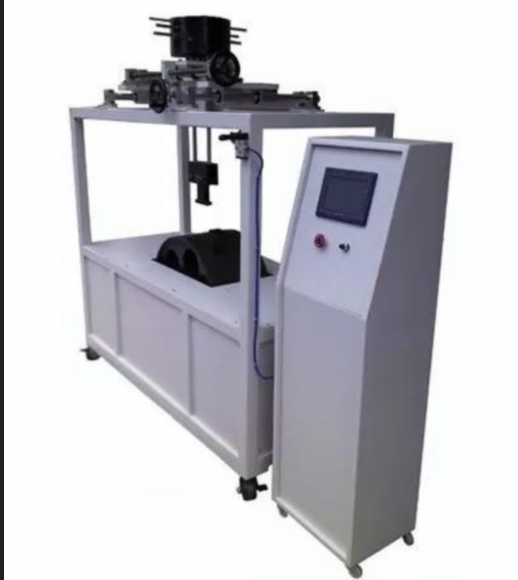

This machine is a simulation of people wearing skates. After a certain test time, the wear resistance of the pulleys is checked to determine the goodness of the test samples, which provides a reliable basis for improving product quality.
This machine drives the sprocket through the motor to drive the drum to rotate, and adjusts the rotation speed of the drum by adjusting the motor speed to achieve the test purpose.
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
