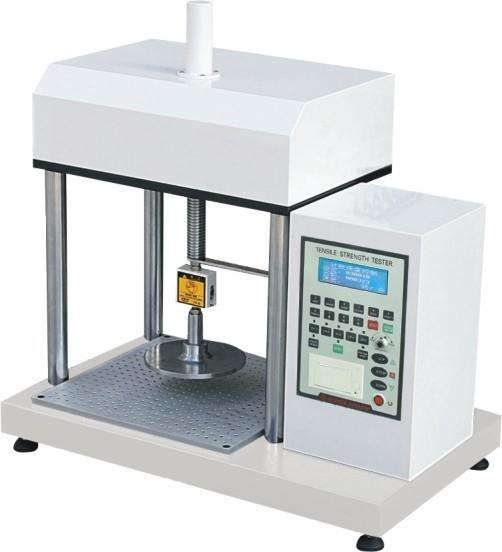

Footwear Compression Puncture Tester

Application：

Footwear Compression Puncture Tester is used to determine the safety footwear ability to resist the compression

Test method: place the safety shoe on the right position, then add certain strength, and then check the degree of the subsidence in order to know about safety.

Test Standards：

GB/T 20991-2007 section 5.5 and 5.8, GB/T12017, ISO 20344-2021 section 5.5 and 5.9, 5.10

AS/NZS2210.2 section5.5 and 5.8, EN12568-2010section5.2.3 and 7.2, EN 344-1 section 5.4 and 5.6,

EN 388 section 6.4, BS-953 section 5, NOM-113-STPS-2009 Section 8.4, CSA Z 195-14 section 6.3.1, ISO 20345, ISO 22568-4-2021 section 5.1, ISO 22568-1-2019 section 5.4, ISO 22568-2-2019 section 5.4, ISO 22568-3-2019 section 5.1, ASTM F2412 section 6 and 11, ASTM F2413 section 5.3, 5.4 and 5.8

Specification：

Product introduction：

Safety Shoes Compression Puncture Resistant Tester is used to measure the compression strength for safety shoes steel head and puncture-resistant performance for steel plate. It Suitable for all types of steel head compression for safety shoes and puncture-resistant test for steel plate,and to prevent the injury of accident to operator in the workplace by wearing owing to the security of shoe

It is used to determine the safety footwear ability to resist the compression

Test method: place the safety shoe on the right position, then add certain strength, and then check the degree of the subsidence in order to know about safety.

Features:

1. With the function of limit protection of mechanical beam.

2. The stress - strain, stress - time, intensity - time and other data can be selected according to the requirements.

3. Potentiometer speed regulation, can be controlled quickly, realizing the positioning function of various clamping displacement.

4. Adopt the famous brand load cell, repeatability error is 0.01%,allowable temperature range - 20 ~ 70 ℃, 100% safety coefficient ,120% ultimate overload.
