UseThe insole backpart stiffness tester is used to testing the stiffness in the longitudinal di
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

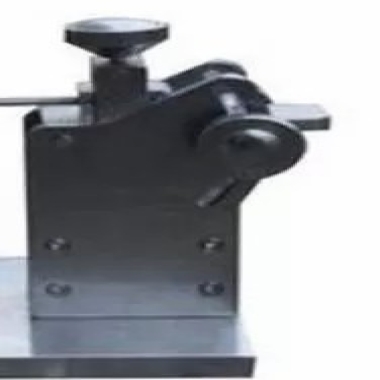

The insole backpart stiffness tester is used to testing the stiffness in the longitudinal direction of steel shanks used for the
reinforcement of the waist region of shoes. The shank is clamped at its heel end and bent as a cantilever beam by masses
added to its forward end. The amount of bending is measured and used to calculate the flexural rigidity of the shank.
Leather stiffness tester machine is used to measure the stiffness in the longitudinal direction of
steel shanks used for the reinforcement of the waist region of shoes, the shank is clamped at its heel end and bent as a cantilever beam by masses added to its forward ,then calculate the flexural rigidity of the shank.
| Rotation Angle of Lower Jaw Seat | 30degree |
| Length of Measuring Clip | 60±0.02mm |
| Depth of Clamp for Front End | 12mm |
| Dial Gauge | 0~10mm(min graduation0.01mm ) |
| Dead Weight | 200+/-1g×4 |
| Dimension(W×D×H) | 37x17x35cm |
| Weight | 12kg |
| Standards | SATRA TM 58 BS 5131/4.18. QB/T 1812. QB/T 1813 |
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
