Product informationThe instrument measures the static friction coefficient of the test piece an
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

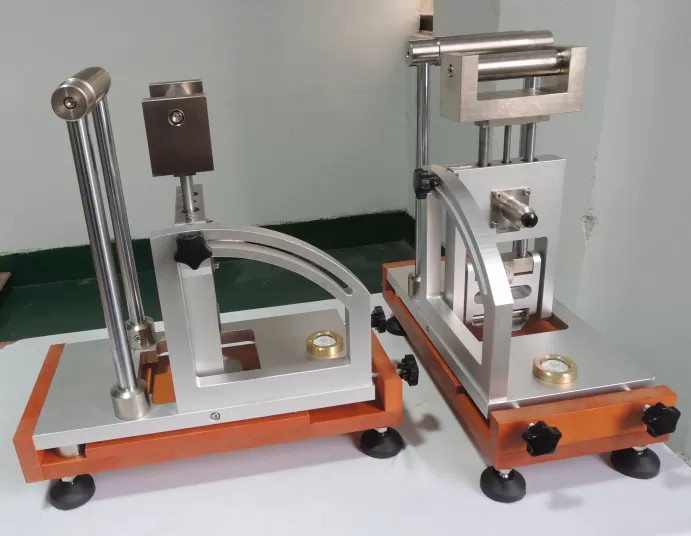

The instrument measures the static friction coefficient of the test piece and the ground based on the principle of the load level and the vertical component ratio. The tester is adjustable and can be used on the ground of various materials such as dry, wet, oil or stained to test the slip resistance of the sole and heel material. Test the dry static coefficient and slip resistance of the sole and heel material.
| Load | 10LB |
| Slide bar diameter | φ12mm |
| Specimen Area | 3″×3″(76.2×76.2mm) |
| Ground Area | 4″×4″ |
| Ground requirment | level ground |
| Holder thickness | 1.25″(31.8m) |
| Baseboard thickness | 3/4″ |
| Distance from specimen to ground | 1/8″~1/4″ |
| Volume | (W×D×H) 22×43×46 cm |
| Weight | 15kg |
ASTM-F1677
