Footwear Testing Equipment Shoes Insole Backpart Stiffness TesterProduct introductionThe i
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

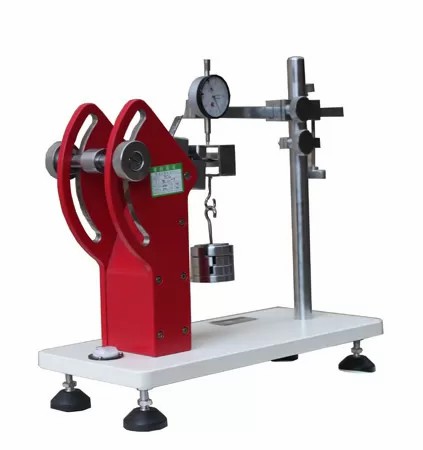

The insole backpart stiffness tester is used to testing the stiffness in the longitudinal direction of steel shanks used for the reinforcement of the waist region of shoes.The shank is clamped at its heel end and bent as a cantilever beam by masses added to its forward end.
The amount of bending is measured and used to calculate the flexural rigidity of the shank.
Leather stiffness tester machine is used to measure the stiffness in the longitudinal direction of steel shanks used for the reinforcement of the waist region of shoes,the shank is clamped at its heel end and bent as a cantilever beam by masses added to its forward,then calculate the flexural rigidity of the shank.
| Rotation Angle of Lower Jaw Seat | 30degree |
| Length of Measuring Clip | 60±0.02mm |
| Depth of Clamp for Front End | 12mm |
| Dial Gauge | 0~10mm(min graduation0.01mm ) |
| Dead Weight | 200+/-1g×4 |
| Dimension(W×D×H) | 37x17x35cm |
| Weight | 12kg |
| Standards | SATRA TM 58 |
