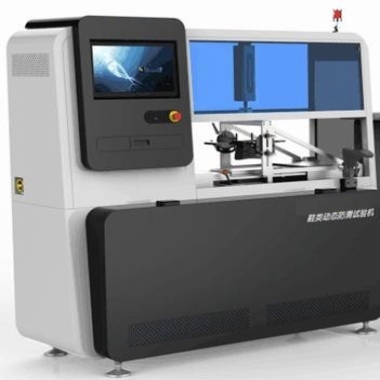

GB/T 3903.6-2017 1500W Footwear Testing Equipment For Dynamic Anti Skid Performance Test

Uses

Used for the dynamic anti-skid performance test of the whole shoe or sole.

Standards

GB/T 3903.6-2017.GB/T 28287-2012.EN 13287-2012.ASTM F2913-2011(ASTM F1677-2005),SATRA TM 144.EN ISO 20345.GB 21148:2020.GB 20265:2019.QB/T 4549:2013.QB/T 4552-2020.QB/T 4553:2013.QB/T 4556:2013.QB/T 5300-2018.QB/T 5301-2018.QB/T 5412-2019.QB/T 5541-2020;

Principle

Apply the specified load through different media (stainless steel plate, ceramic tile or specified). Set the specified number and speed of friction. To measure the friction coefficient of the sole to determine the slip resistance of the shoe;

Test items:Forward heel slip

Backward forepart slip

Forward flat slip

Specifications

1. Vertical pressure: 0～1000N;

2. Horizontal tension: 0～1000N;

3. Test speed: (0～0.3±0.03) m/s adjustable;

4. Stroke of movable plate: 0～200mm;

5. Static contact time: 0～5s;

6. Fixing device of shoe last: 0～30;

7. Vertical sensor: 1KN one (Japan NTS disc type);

8. Level sensor: 1KN two (Japan NTS disc type);

9. Accuracy: ±0.5%;

10. Vertical pressure control accuracy: ±1%;

11. Vertical pressure control time: 0 to set value, less than 0.2 seconds;

12. Planetary reducer: the reduction ratio is 1:15. and the operation is low noise;

13. Adopt precision linear guide rail;

14. Brake clutch: Taiwan R&D;

15. Transmission timing belt: South Korea Samsung;

16. Displacement sensor: Japan Rheinland precision 0.001mm;

17. Work table: 600*320mm (made of stainless steel);

18. Control motor: Japan Panasonic 750W servo motor;

19. Pressurization system: using Japanese SMC proportional valve control, computer setting, automatic pressurization;

20. Sample rack: made of aluminum alloy;

21. Control system + software: High-speed acquisition system and special test software developed by Hengyu Company, built-in test methods such as EN 13287. SATRM 144. ASTM F2913. GB/T3903.6. etc. can be called directly;

22. Force cylinder: SMC cylinder;

23. Protection device: leakage protection, pressure overload protection, air buffer stroke limit protection. Emergency stop switch protection;

24. Wedge angle gauge: 7° and 5°;

25. Compressed air: minimum 6 bar, with cleaning device after grinding (pneumatic spray gun);

26. The instrument is equipped with a foldable last quick-loading rack;

Size (length*width*height cm): 192*81*175;

Weight(kg):300;
