StandardGB3903.36. ISO 22774:2004method 1: lace to lace abrasion;method 2: lace to standard eye
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
GB3903.36. ISO 22774:2004
method 1: lace to lace abrasion;
method 2: lace to standard eyelet abrasion;
method 3: lace to eyelet (from footwear) abrasion.

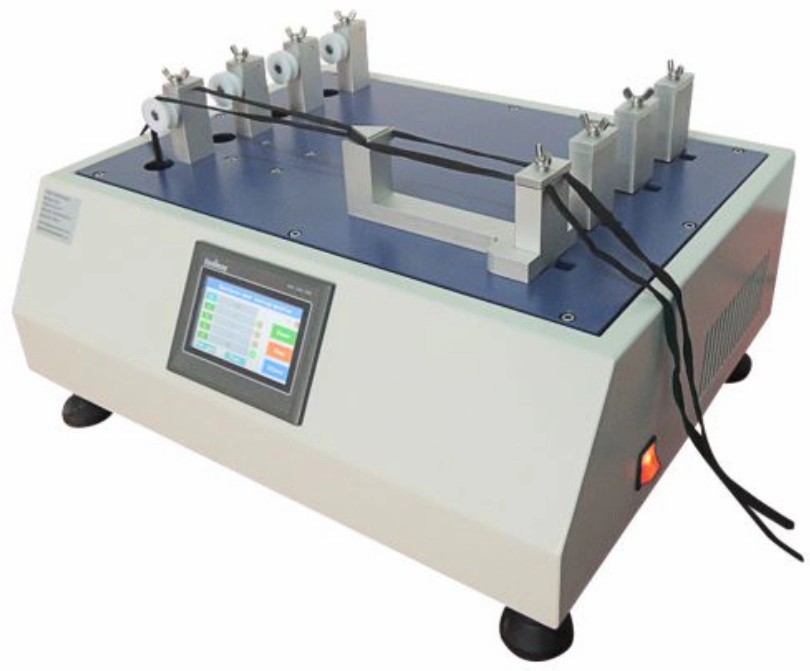

Test Method: SATRA TM154
Shoe lace to shoe lace and shoe lace to lace carrier abrasion
| Item | Specification |
| Activity gripper and fixed gripper’s mini space | 280 ±50 mm |
| Reciprocating stroke of activity gripper | 35 ± 5 mm |
| Test Speed | 60 ± 6 cycles/min |
| Gripper | 4 Sets |
| Template | Angle 52.5°, Length 190 mm |
| Metal strip | W 25mm, L 60mm stainless steel |
| Weight | 250 ± 3g, 4 pics |
| Counter | Touch screen 0~999.999 |
| Dimension | 55 cm × 47 cm × 34 cm |
| Weight | 43 kg |
| Power | 1Phase 220V50HZ |
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
