Product introductionThis machine is suitable for detecting the binding capacity of the hook and
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

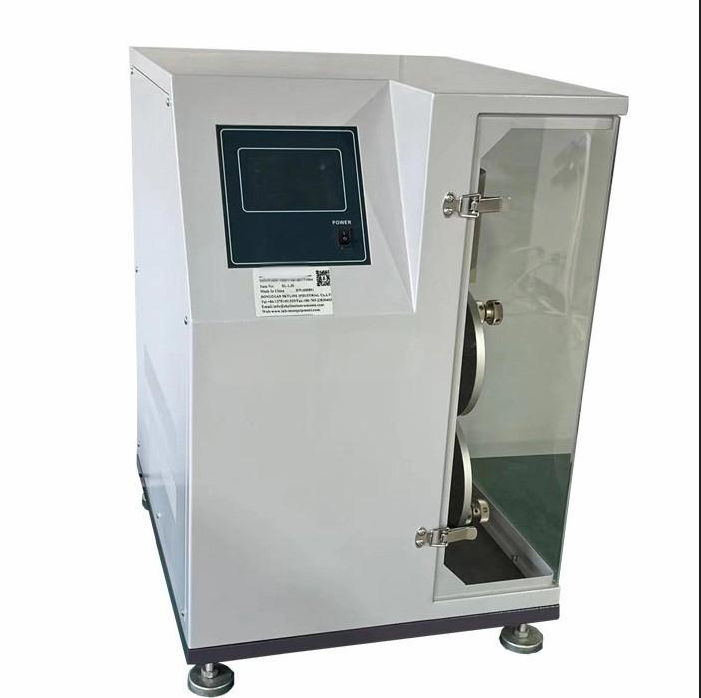

This machine is suitable for detecting the binding capacity of the hook and loop fastener ( Velcro tape) after the repeated
stripping and fitting action.
In use Velcro repeated stripping and fit the action, so after a certain number of times, then rolling sample to the weight of the wheel itself, so that uniform fit measured adhesion forces with some of the adhesion strength
| Rolling speed | 72rpm |
| Load | 5kg |
| Roller Dia | 136mm |
| Roller Width | 80mm |
| Counter LCD display | 0-999.999 |
| Dimension (W×D×H) | 45*55*57cm |
| Power | AC220V 90W |
| Speed | 60+/-5r/min |
| Load | 1+/-0.1N/mm |
| Counter | LCD.0-999.999 |
| Dimensions | 450 x 550 x 570mm ( L x W x H ) |
| Weight | 70kg |
| Standards | DIN-3415 BS EN ISO 22776 SATRA TM123 |
| Standard Accessories | Weights pack of 3 Weights device pack of 1 Handle pack of 1 Power Line pack of 1 |
