Main features:Spinning high uniform, high quality nanofibersBy constructing a stable electric field
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

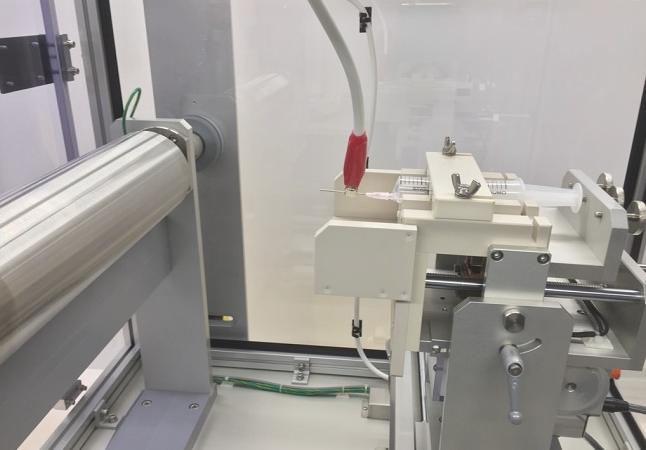

The Nanofiber Electrospinning Device is designed to fabricate nanofibers with diameters ranging from 50 to 800 nm using electrospinning technology. It enables rapid production of high-uniformity fibers from small amounts of polymer. The unit is widely used in research and development of filters, fuel cells, nanofilms, composite materials, biomedical scaffolds, and other nanotechnology applications.
Materials Science: nanofiber membranes, composite material reinforcement
Filtration and Separation: air filters, high-performance liquid separation membranes
Energy Technology: fuel cells, dye-sensitized solar cells, battery separators
Biomedicine: artificial skin, artificial leather, cell culture scaffolds
Electronics and Optoelectronics: nanowires for IC chips, organic EL films
Catalysis and Functional Materials: nanocatalyst carriers, ion exchange membranes
Fibers and Textiles: high hand-feel fibers and films
Research & Development: nanofiber structure studies, nanofilm fabrication, fiber surface area enhancement
T/YNIA 017-2023 "Electrospun Nonwoven Air Filter Materials"
| Parameter | Specification |
|---|---|
| Dimensions / Weight | W900 × D750 × H1080 mm / approx. 120 kg |
| Power Supply | AC100V, max. 80 W (must be grounded) |
| Operating Environment | Temperature 10–40°C, humidity 30–70% RH, non-condensing |
| DC High-Voltage Power Supply | 0–39 kV digital display, leakage current Max. 500 μA |
| Exhaust Fan | Multi-blade (scirocco) fan |
| Injection Pump Capacity | Standard 20 ml, up to 3 pumps |
| Injection Speed | 0.000–0.500 mm/min (stable range 0.030–0.250 mm/min) |
| Injection Movement Speed | 0–300 mm/min |
| Injection Target Range | 0–200 mm (standard) |
| Injection Distance | Horizontal 45°, vertical adjustable up to 150 mm |
| Drum Size | Diameter 100 mm, width 330 mm |
| Drum Circumferential Speed | 0–9.00 m/min |
| Safety Measures | Spark limiter (stops above 500 μA), valve interlock |
Controlled Fiber Diameter: produces fibers from 50 to 800 nm with high uniformity and reproducibility
Multi-Polymer Compatibility: small polymer quantities can produce nanofibers rapidly
High Safety Design: spark limiter and valve interlock ensure safe high-voltage operation
Controllable Injection System: adjustable pump speed, movement speed, and injection distance
Drum Collection Device: enables continuous winding or batch collection
Broad Application Scope: suitable for automotive, energy, electronics, biomedical, catalysis, and textile research
| Accessory / Consumable | Function |
|---|---|
| Injection Pump (20 ml) | Nanofiber material injection and speed control |
| Drum Collector | Nanofiber collection and winding |
| Electrode Capillary | Electrospun fiber formation |
| High-Voltage Power Supply | Provides electrospinning electric field |
| Exhaust Fan | Removes solvent vapor and volatile substances |
| Safety Device | Spark limiter, valve interlock for operational safety |
The unit uses electrospinning to form continuous polymer fibers under a high-voltage electric field. Polymer solution or melt is ejected from the positive electrode to the grounded collector, forming continuous nanofibers on the collector plate or drum. Fiber diameter, spinning speed, injection distance, and voltage are adjustable.
Operation Steps:
Set workspace temperature and humidity
Install injection pump(s) and drum collector
Configure pump speed, movement speed, and deposition distance
Activate high-voltage power supply
Observe fiber deposition and adjust parameters as necessary
After completion, turn off power and collect fibers
Clean injection pump and electrode capillary regularly to avoid clogging
Inspect drum collector and electrodes before each use
Ensure proper grounding and check insulation of high-voltage components
Keep workspace dry and free from condensation
Store unit in a dust-free environment when not in use
1.What is this product?
A laboratory unit for producing nanofibers using electrospinning technology.
2.What is this product used for?
Producing nanofibers for research, filtration, biomedical, energy, and material applications.
3.Why is this product important?
Enables precise fabrication of nanofibers with controlled diameter and uniformity, supporting advanced material development.
4.What industries is this product suitable for?
Automotive, energy, electronics, biomedical, textile, and materials research.
5.What types of this product are available?
Standard lab-scale nanofiber electrospinning unit with up to three injection pumps and adjustable collector drum for continuous or batch collection.
