Table & Desk integrated testing machine table strength and durability test machine

Test Item

Machine Introduction

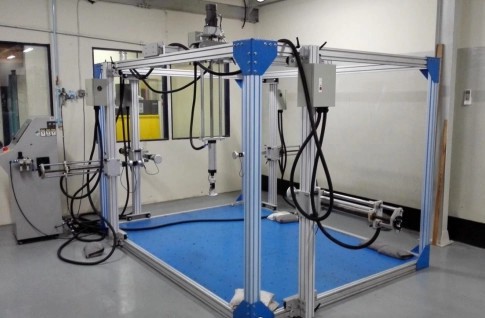

The machine is used to perform table, desk and other furniture static load test and durability test. Each pneumatic can work together or independently, also the position can adjust to meet different test requirements.

Standard Feature

1. The machine equips with five groups of pneumatic brakes, one group of vertical apparatus and four groups of horizontal apparatuses, each group can adjust test speed and force independently, stroke 500mm.

2. Vertical apparatus can adjust forward and backward, up and down from 100mm to 900mm.

3. Horizontal apparatuses can adjust up and down, left and right to meet different test positions flexibly.

4. Machine bottom has multiple rows of screw holes for conveniently install and fix test products or parts.

5. Each pneumatic brakes equip with fast joints for conveniently change different fixtures and loads.

6. PLC color touch screen, with simple control interface and diagram display.
