5 Air Cylinders PLC Control Furniture Testing Equipment, Table Furniture Testing Machine

Test Standards

EN 12521. BS EN 15372; EN 1730; EN 581-3. EN 1728

Features

It equips 5 group pneumatic cylinder which is 1 set vertical device and 4 set calibrate velocity & thrust separately. Stroke is 500mm

Quadruplet brake of vertical device can be adjustment front and back & up and down (100mm~900mm)

Quadruplet brake of horizontal device can be adjustment up and down & left and right, it can cooperate with different test position.

It has several rows screws hole in the bottom panel of tester which is convenient to install different accessory or fixed test condition

It equipped the quick coupling location in front of pneumatic brake for each group which is convenient to change different load or grip.

Color touch screen & PLC controller, easy operate interface, display imaging and more inconvenient for operator.

This test machine is used for testing the strength and stability of tables and trollys.Can do following testing.

Strength Testing

Vertical static load test

Sustained load test

Horizontal static load test

Vertical impact test

Stability Testing:

1. Vertical stability test

2. Horizontal impact test.

Product Introduction

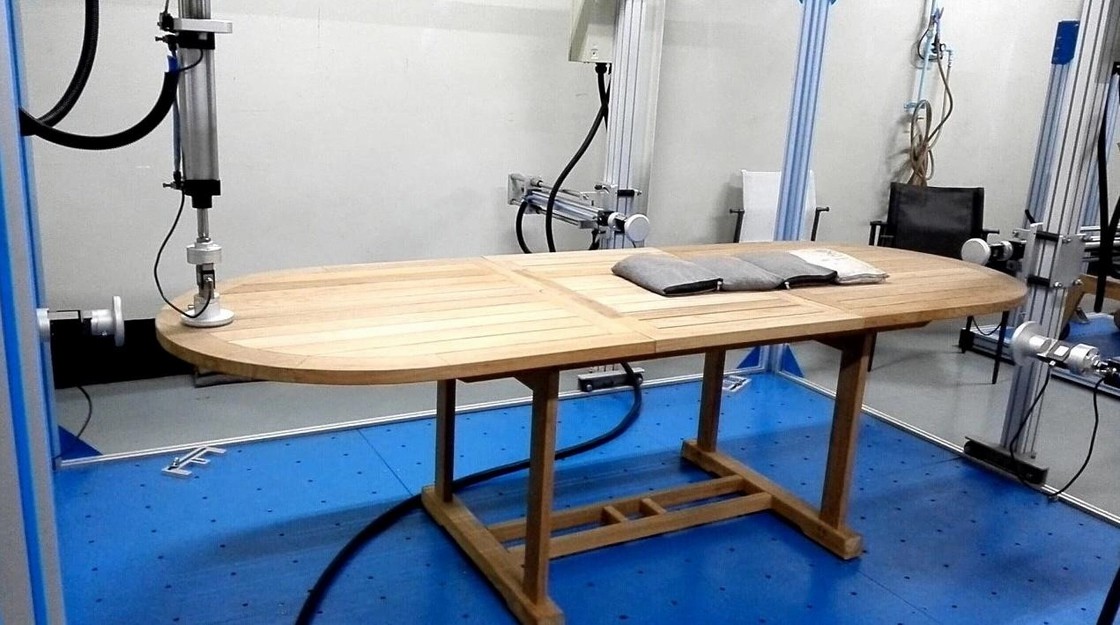

This machine is used for static load test and durability test of table, desk and other furniture. Each pneumatic device can work together or independently, and can also be adjusted to meet different test requirements
