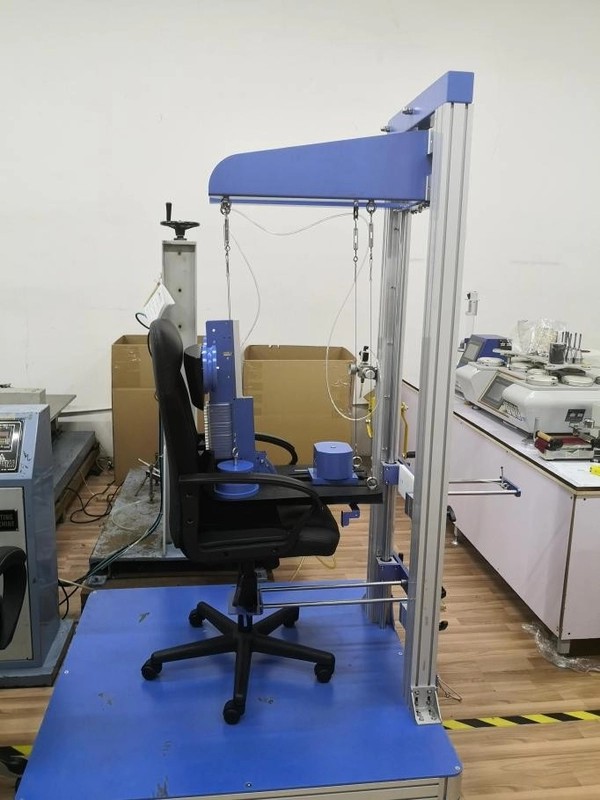

Office Chair Mearsuring Devices CMD EN 1335-1/ ISO 24496

Test Standard

ISO 24496. EN 1335-1

Technical Parameter

1. CMD size:618*381*657mm; net weight: 64Kg (standard)

2. Adjustable height between the bottom of CMD and the test platform: 130-900mm

3. Effective width of the platform supporting the sample under test: 800mm

4. Overall dimensions: 1080*1385*2150mm, Weight (with CMD): 196 Kg

Product Introduction

1. Adjust the height of CMD through the hand winch with self-locking function, so that CMD can stay at any height.

2. Independent sample support platform, adjust the level of the support platform by adjusting the height of the foot.

3. Four stainless steel rope independent four-point suspension support fixture, so that CMD under the action of level 40 Newton force, any level state.

The minimum distance between the equipment and the ground is greater than 80 mm, which is convenient to adjust the level of the equipment and carry the forklift.
