TECHNICAL PARAMETERSMaximum pressure100kgMaximum stroke150mmTest speedConstant speed 100±20 mm/
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
| Maximum pressure | 100kg |
| Maximum stroke | 150mm |
| Test speed | Constant speed 100±20 mm/min |
| Electric cylinder speed | 1~80mm/s |
| Pressure sensor accuracy | 0.3% FS |
| Stroke accuracy | ±0.2mm |
| Counter | 0～999.999 times |
| Display | Touch Screen display, PLC control |
| Machine Dimension | (L×W×H) about 1100×1100×1200mm |
| Weight | About 120kg |

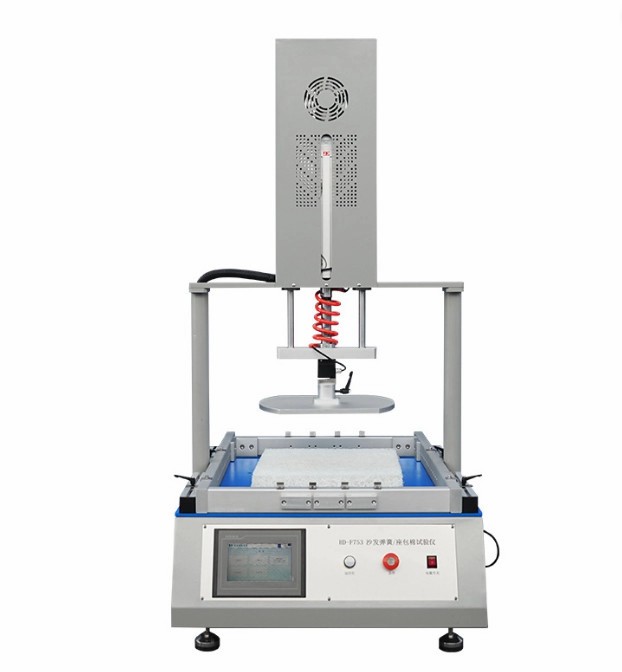

It used to assess the durability test for snake spring, spring framework, and package spring. And it complies to the following requirements:
1. Durability Test
The durability test can repeat according to the pre-set strength, also the frequency can be set, and the machine will stop automatically when times up.
2. Relationship between compression stroke and pressure range
Under pressure by pre-set schedule, in place to stop. Read the spring force of the stroke on the pressure gauge, the display shows the stroke value
3. Spring pressure testing under the specific amount of compression
The machine will stop when the platen press to the set pressure, the length of the compression stroke of the pressure will display on the screen.
