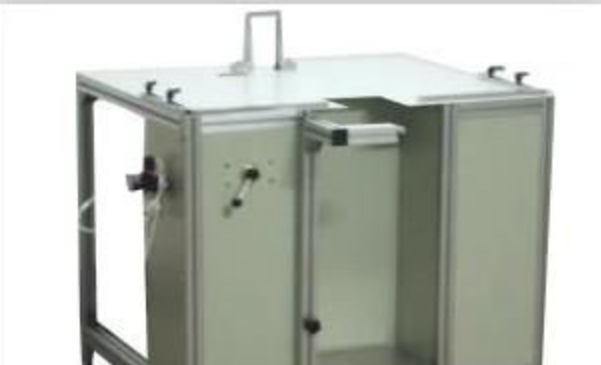

This machine is suitable for testing the front end stability of seat (such as chair, office chair).
Standards compliant:
ANSI/BIFMA X5.1-2011 12.4;
BS EN 1335-3:2009 7.1.1;
BS EN 1335-3:2009 7.1.2
Place the test piece on the test surface, block the front foot with the stopper, apply a certain load on the seat surface, apply a force of 20N forward at the loading point, and check whether the test piece is tilted forward to evaluate the forward stability of the test piece. Sex
| Seat loading | Max.: 600N, cumulative |
| Pull force | 20N |
| Loading point position | the center position of the seat surface, 60mm from the leading edge |
| Seat loading pad | diameter: 200mm, curved surface: R300mm |
| Loading rod: diameter | 19mm, both ends: type A: spherical surface SR9.5mm/B type: pointed surface 45° |
| Weight basket promotion | manual control |
| Weight (approx.) | ≈200Kg |
| Volume (WxDxH) | 100x140x105cm |
| Gas source | ≥6kgf/cm2 stable gas source |
