ApplicabilityThis test applies to pedestal base chairs with casters.The purpose of this test is
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
This test applies to pedestal base chairs with casters.
The purpose of this test is to evaluate the ability of the chair base and casters to withstand
fatigue stresses and wear caused by moving the chair back and forth
standard: ANSI/BIFMA X5.1-17
| Load weight | 102kg,plus |
| Move stoke | 800mm |
| Block | width 51mm,thickness 3.2mm,three pieces ,detachable |
| Drive mode | drive by cylinder |
| Test speed | 10±2 times /min |
| Test times | with block 2000 times ,98000 times without block |
| Counter | 0~999999 times ,can be set |
| Air source | 6kgf/cm^2 |

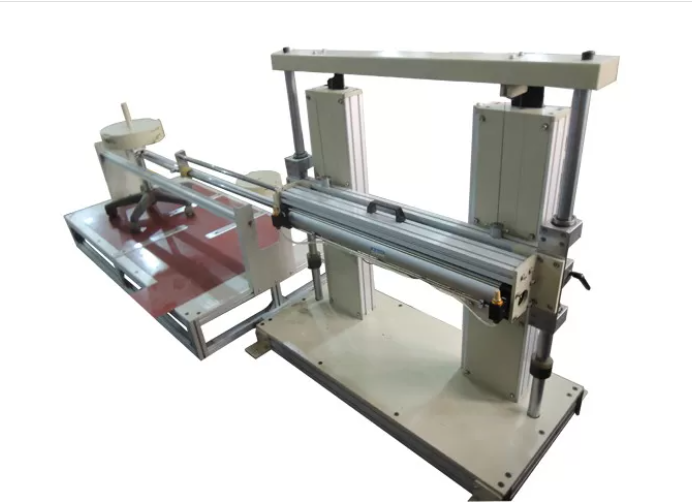

12mm steel plate welded below the 100 GB channel, laying stainless steel top. Installation activities corners and locking casters.
Jumbo aluminum. Overall vertical solid and beautiful.
Touch screen + PLC + power sensor + specimen position sensor, the whole forming a closed-loop control. Loading speed can be adjusted. Easy installation
BIFMA X5.1 17 Clause
