ApplicationThis testing machine is according to DIN 68898, EN 15338, EN 1727 and BIFMA standard
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

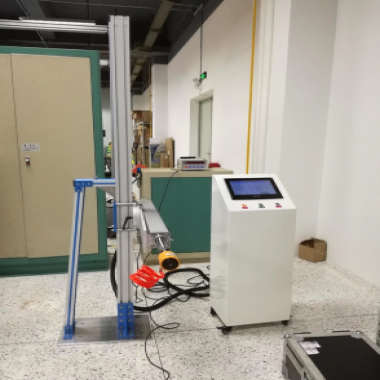

This testing machine is according to DIN 68898. EN 15338. EN 1727 and BIFMA standards to test the durability of the drawer and guide rail.
The parameters can be easily defined and the mechanical height adjustment system is easy to operate to meet the test of different types of drawers.
Use the USB port on the PC, data, control commands and software settings
And then that can be transmitted from central supply terminal to pneumatic test channel.
| Electric actuator stroke | 600mm |
| Servo Motor | 400w |
Brand sensor | 200kg |
| Control method | 7 inches+ touch screen |
| Control | Segmented software control, flexible operation, convenient |
structure | Aluminum profile structure, reasonable fixed way, electric actuator can move between up and down ,left and right |
GB/T 10357.5 ANSI/BIFMA
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
