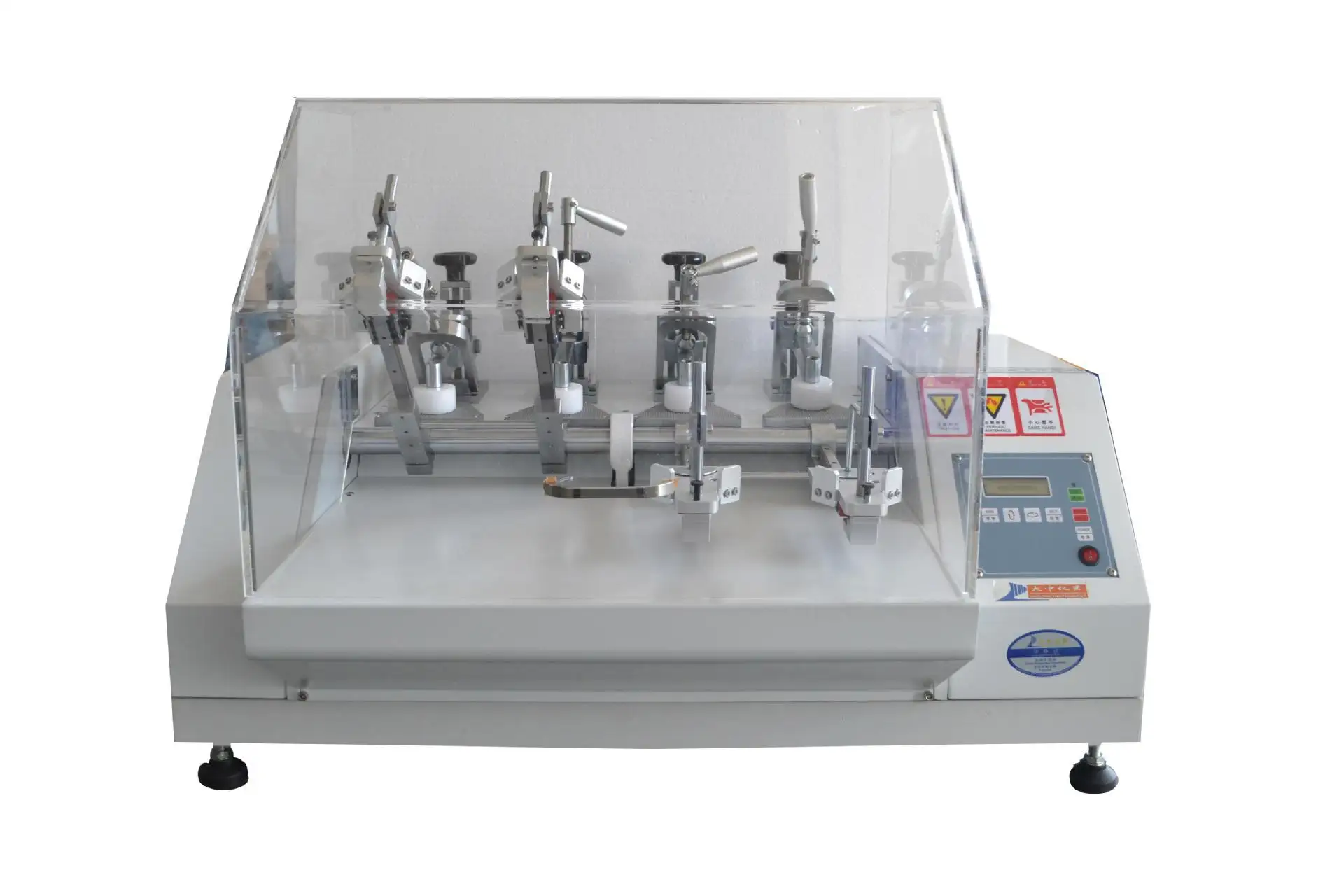

Whole Shoes Flexing Tester

Shoes Flexing Tester determine its flexibility resistance of shoes or shoes sole through reciprocating flexing movements under the specified angle and frequency.

Application:

The whole shoes flexing tester is used to test finished shoes, like sports shoes, casual shoes, work shoes etc. And determine its flexibility resistance or indicating the cracks of shoe or shoe sole through reciprocating flexing movements under the specified angle and frequency.

Feature：

1. Shoe Flexing Testing Machine Equipped with acrylic protective cover, which make sure safe operation and low noise.

2. Heel fixture using linear slide for smooth movement with little resistance.

3. Freely set running times and machine automatically stop after test finished.

Parameter:

Test sample：Test 4 samples simultaneously

Control method：Touch screen control

Bending angle：0~ 90° (adjustable)

Test speed：0°~50°, adjustable speed range: 60~230 rpm、50°~90°, adjustable speed range: 60~140 rpm

Counter：0-99,999,99 (7 digits)

Power：1∮AC 220V 50/60HZ  3A

Dimension(W×D×H)：95 x 76 x70cm

Weights：223kg

Standards：

SATRA TM92,

ISO 24266 Method A
