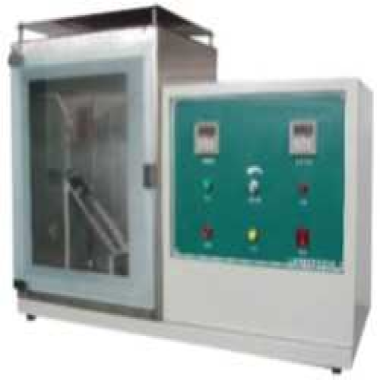

The instrument is used to measure the intensity and speed of burning of flammable textiles when ignited.
Standards
GB/T 14644-2014 Textiles-Burning behaviour-45°test determination of flame spread rate
CFR 1610 Standard for the flammability of clothing textiles
Technical Parameters
| Items | Parameters |
| Burning time range | 0 ~ 99.99s; resolution: 0.01s |
| Ignition time | 1s, resolution: 0.01s |
| Igniter Caliber | 41/2 syringe needle |
| Sample size | 150mm × 50mm |
| Sample clip size | Shape -205mm × 76mm; inner frame -130mm × 40mm |
| The tip of the igniter is 8 mm from the specimen surface | |
| Flame spray the sample from the midpoint to the mark line distance | 127mm |
| Flame height | 16mm |
