Standards：ASTM F1955，CPAI 75 Application：Sleeping Bag Flammability Tester, to determine the flammabi
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
ASTM F1955.CPAI 75

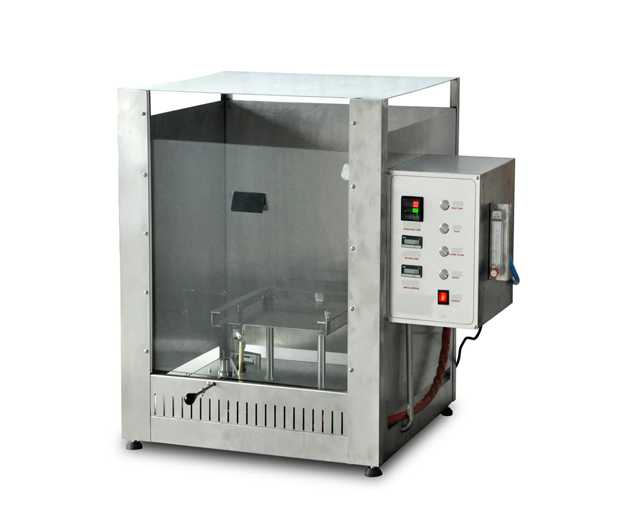

Sleeping Bag Flammability Tester, to determine the flammability resistance of sleeping bag. Both manual testing method and automatic testing method can be performed. Flame height can be adjusted through gas valve provided.
Ten specimens are cut from individual sleeping bags or a physically accurate facsimile. A standard-ized flame is applied to the folded edge for a specified time under controlled conditions and the burn rate is calculated to determine if the specimens meet specification requirements.
Stainless steel test chamber (Includes glass viewing windows)
Stainless steel support frame
Sample clamp with U-shaped
#50 White mercerized cotton thread
Burner diameter: 0.90+-0.03mm
Burner length: 1.60+-0.05mm
Burner tube inside diameter: 10mm
Burner tube length: 38mm
Weight hammer: 2
Weight：90 kg
Power：220/110 V，50/60 Hz
Width:720 mm
Depth:800 mm
Height:760 mm
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
