The Filter Media Dynamic Filtration Performance Tester is mainly used to test the filtration perform
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

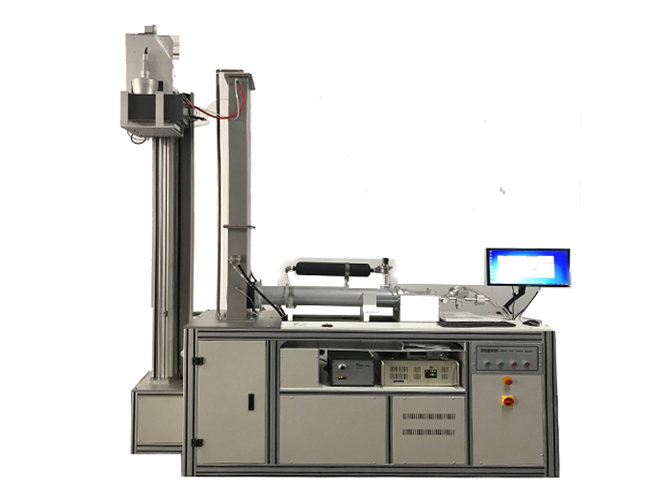

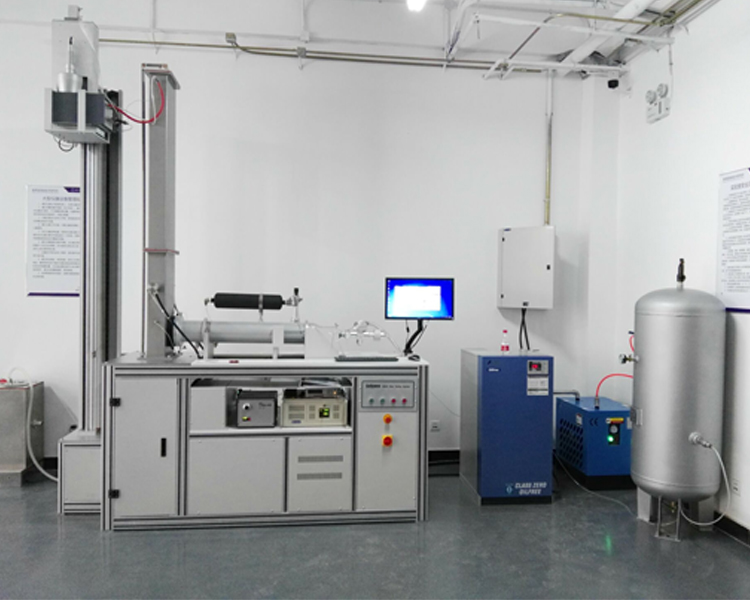

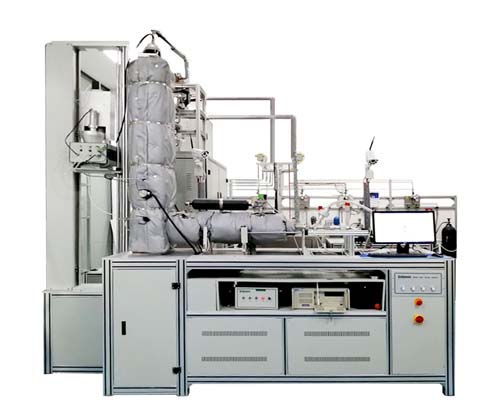

The Filter Media Dynamic Filtration Performance Tester is primarily used to assess the filtration performance of filter media. This equipment is user-friendly, compact, and robust in design. It allows for quick and convenient adjustment of dust concentration values during filtration tests, with a high degree of simulation of actual conditions. After testing, the digital system of a light scattering spectrometer measures particle size and concentration online.
Filter media testers are widely used in quality control and production management in industries such as pharmaceuticals, medical devices, and laboratories. They are used to evaluate the integrity, filtration efficiency, pressure drop, and other properties of filter media to ensure product hygiene and safety. Here are some specific application areas:
Pharmaceutical Industry: Filter media testers are used to evaluate filter integrity, ensuring the quality of sterile products.
Medical Devices: Filter media testers are used to test the performance of medical device filters, ensuring their effective retention of contaminants.
Laboratory: Filter media testers are used for filtration performance testing in laboratory environments, ensuring the accuracy of experimental results.
The use of filter media testers not only improves product quality but also ensures user safety. Their wide application and reliability make them indispensable equipment in modern industry.
GB/T6719-2009 : Technical requirements for bag dust collectors
ISO 11057-2011 : Filter performance test of cleanable filter media
VDI 3926-2004 : Filter performance test of cleanable filter media
ASTM D6830 : Standard Test Method for Characterizing the Pressure Drop and Filtration Performance of Cleanable Filter Media
VDI/DIN 3926: Testing of cleanable filter media Standard test for the evaluation of cleanable filter media
GB/T 6719: Specifications for bag house
JIS Z8909-1: Test method of filter media for dust collection Part 1:Filter efficiency
DIN 71460-1: Road vehicles - Air filters for motor passenger compartments - Part 1: Test for particulate filtration
ISO 11 155-1: Road vehicles — Air filters for passenger compartments — Part 1: Test methods for particulate air filters
VDI 3926-II: esting of cleanable filter media - Part 2: Static filtration performance test
EN 779: Particulate air filters for general ventilation — Determination of the filtration performance
1. The dynamic performance detection device for filter materials has the advantages of reasonable structural design, accurate test parameters, and simple and easy operation. It can complete comprehensive performance tests such as resistance and efficiency of filter material cleanliness, aging, and stability.
2. Color LCD operation interface, digital graphics processing, and XDT software can independently display the Chinese interface and edit and process the curve. It has two functions: custom and programmable, and comes with 5 standard test methods. It has a fault self-calibration function. It has an operation encryption function and can be remotely controlled.
| Item | Technical Parameter |
|---|---|
| Particle type | Non-sticky dry powder |
| Continuous operation time | 1–50 h |
| Compressed air requirement | ≤ 6 bar |
| Dust mass flow | 0.05–20 g/h, continuously adjustable, stability ≤ 5% |
| Aerosol outlet mass concentration | 0.012–13 g/h |
| Power supply | 100–260 VAC, 47–63 Hz |
| Filter test area | 140 mm diameter |
| Filter face velocity | 1–3 m/min, adjustable |
| Horizontal pipe flow | 0–3 m³/h |
| Bypass pipe | Extensible |
| Pressure sensor range | 0–2000 Pa |
| Pressure sensor accuracy | ±2% |
| Backflush pressure | 0.2–0.6 MPa, adjustable |
| Backflush time | 50–200 ms, adjustable |
| Pulse valve control | Time-controlled and pressure-controlled |
| Suction flow controller | Mass flow meter 80 LPM, accuracy 0.1 LPM |
| Dust dispersion air control | Mass flow meter 20 LPM, accuracy 0.1 LPM |
| Vacuum pump | 8 m³/h, 4 × 10⁻⁴ mbar, 550 W |
| Control software | Pressure signal sampling (A/B/C/D), constant-pressure injection, aging control |
| Test modes | Manual, semi-automatic, automatic |
| Data processing mode | NEU data processing mode |
Reference Filter Media List
Flat-Sheet Filter Membrane and Weighing Filter Membrane Fixtures
Reference Pressure Drop Plate
Oil and Salt Aerosol Generators
Optional Spare Parts
1. Initialization treatment: Determination of dust filtration performance of initial filter material sample, cleaning is performed when pressure loss reaches 1000Pa, and the weight gain of high-efficiency filter membrane and outlet dust concentration is measured and recorded after 30 repetitions;
2. Aging treatment: 10.000 aging treatments with 5-second intervals;
3. Stabilization treatment: Stabilization treatment, installation process A performs 10 dust filtration and cleaning operations;
4. Stabilization treatment: Perform 30 dust filtration and cleaning operations according to A.
1.What is this product?
This product is a dynamic filtration performance tester for evaluating filter media efficiency, pressure drop, and dust loading behavior.
2.What is this product used for?
It is used for filtration performance testing, aging evaluation, and quality control of filter materials.
3.Why is this product important?
It provides quantitative and repeatable data on filtration performance under simulated operating conditions.
4.What industries is this product suitable for?
Pharmaceuticals, medical devices, dust collection systems, filter manufacturing, and research laboratories.
5.What types of this product are available?
The system supports flat-sheet filter media testing with configurable airflow, dust loading, and control modes.
YouTube video introduction: https://www.youtube.com/watch?v=yUL8Ks5kiiE

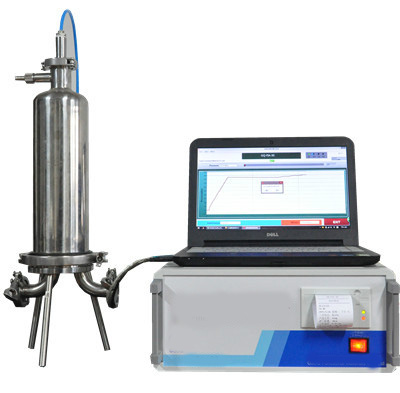

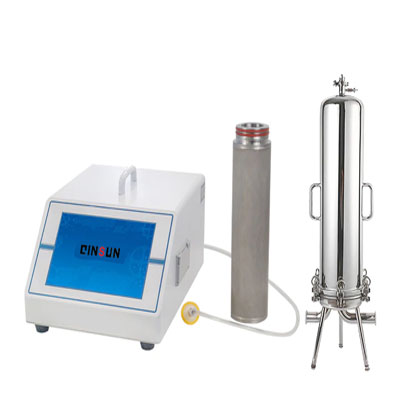

Similar products ：Filter Integrity Tester
