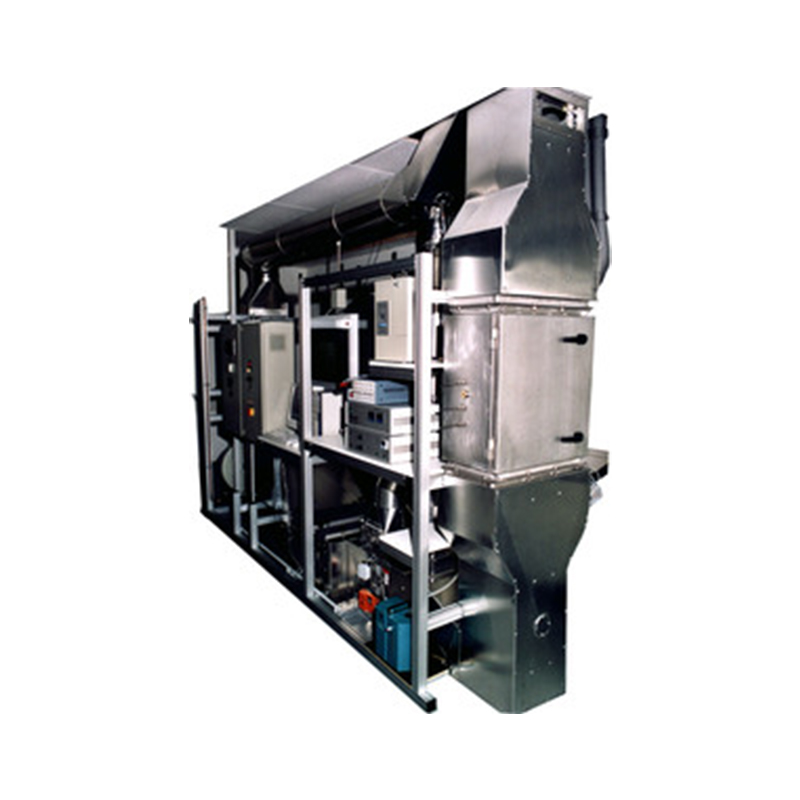

DIN 71460 Part 1 and ISO/TS 11155-1 standards
| Measurement range (size) | 0.12 – 40 µm |
| Volume flow | 60 m3/h – 800 m3/h (cycle operation) |
| Dimensions | Test rig: 1.000 • 2.800 • 4.200 mm, filter holder: 300 • 600 mm (filter and others on request) |
| Material | Stainless steel V2A, 2 mm |
| Temperature regulation | +18°C – +90°C |
| Luftfeuchteregelung | 30% up to 70% |
| Temperature- und humidity sensor | – measuring range: -20°C – +80°C, 0 – 100 % rH, – accuracy: ± 0.1°C (20°C), ± 1 % rH (0 – 90 % rH), ± 2 % rH (90 – 100 % rH) |
| Barometric pressure gauge | – measuring range: 600 – 1100 hPa, – accuracy: ± 0.10 hPa |
| Differential pressure gauge | – Messbereich: < 2500 Pa, – Linearitätsfehler: < 0.2 % vom Endwert |
| Measurement of the air velocity | – measuring range: 0.5 – 40 m/s, – accuracy: < +/- 0.05 m/s (up to 20 m/s), < +/- 0.08 m/s (20 – 30 m/s), < +/- 0.1 m/s (30 – 40 m/s) |
| Preconditions | 3 phases, 400 V, neutral, earth connection of approx. 3 KW and provision of pressurized air max. 8 bar |
Particle measurements from 120 nm
• Measurement and evaluation of fraction separation efficiency and burden
• Automatic data acquisition for barometer pressure, temperature, humidity, differential pressure
• Temperature control (+18°C to +90°C) and moisture control (30 – 70%)
• Automatic actuation of all test rig components
• Automatic performance of the measurement processes
• Individual programming of measurement processes for filter testing using the FTControl software
• Separate measurement and analysis parts – this saves time and money, as the analysis can be performed while the measurement is still on-going
• Printouts and saving of complete test records
• Easy access to all data for the recorded measurement signals from the up to 6 external sensors
• Low-maintenance
• Easy operation
• Reliable operation
• The unit will reduce your operating costs
Complete filter test in accordance with DIN 71460 part 1 & ISO/TS 11155 part 1
• Test of filter media in accordance with DIN 71460 part 1 & ISO/TS 11155 part 1
• Testing of other complete filters and filter media
