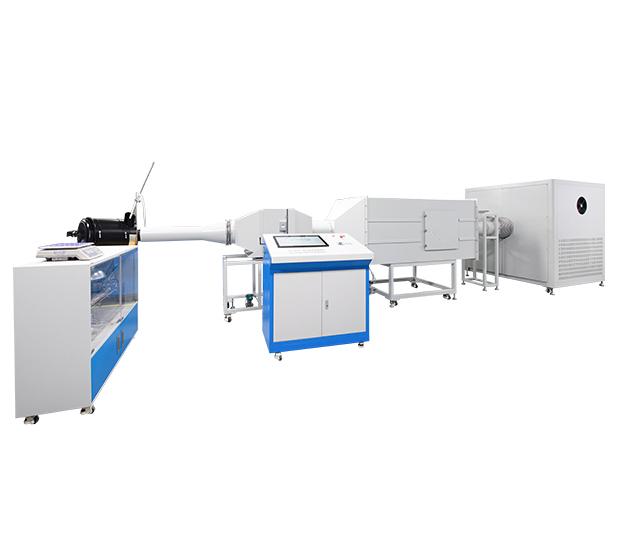

Air Intake Filter Performance Test System

The Air Intake Filter Performance Test System is engineered for evaluating the filtration efficiency, airflow characteristics, and dust holding capacity of air intake filters used in automotive engines and industrial systems. The system ensures accurate, repeatable, and internationally comparable results, fully compliant with standards such as ISO 5011, SAE J726, and GB/T 12485. It is suitable for both research and production quality control, enabling detailed analysis of filter performance throughout its service life.

Application

This test system is widely applied in the evaluation of automotive and industrial air filters, engine intake systems, and other air-cleaning components. It is suitable for R&D testing of new filter products, performance verification of different filter brands, and quality inspection by laboratories and production facilities. The system allows comprehensive assessment of filters at various loading stages and operating conditions, providing data critical for product design, certification, and maintenance planning.

Standards

(1) ISO 5011 – Inlet air cleaning equipment for internal combustion engines and compressors.

(2) SAE J726 – Air cleaner test code for automotive and diesel engine filters.

(3) GB/T 12485 – Test methods for air cleaners in internal combustion engines.

(4) ISO 12103-1 – Test dusts (A2 Fine and A4 Coarse) for efficiency and dust holding capacity evaluation.

Features

(1) Multi-functional testing capability including dust holding capacity, restriction vs. flow, initial resistance, incremental efficiency, and full-life efficiency.

(2) Automated and intelligent control system integrating electronic weighing, airflow, and pressure monitoring for real-time data acquisition.

(3) High-precision nozzle flow meter with automatic range switching for accurate airflow measurement.

(4) Compact and modular design compatible with various filter sizes and shapes using custom adapters.

(5) Reliable filtration system equipped with reinforced absolute filters (F8 V-bank) ensuring stable airflow and accurate measurements under load.

(6) Fully automated test sequences with step-by-step guidance to minimize operator errors.

(7) Integrated software enabling real-time visualization, automated report generation, historical data storage, and remote monitoring.

Technical Parameters

Accessories

(1) Dust feeder

(2) Filter adapters for various elements and assemblies

(3) F8 V-bank reinforced absolute filters for clean airflow

(4) Integrated PC and touch interface for control and monitoring

Test Procedures

(1) Restriction and Differential Pressure Test – Measures pressure drop at multiple airflow rates to evaluate airflow capacity.

(2) Initial Efficiency Test – Determines the filter’s particle capture efficiency at the start of operation using A2 or A4 test dust.

(3) Full-Life Efficiency Test – Measures filtration efficiency over the complete service life until the filter reaches the final restriction.

(4) Incremental Efficiency Test – Evaluates filter performance at multiple loading stages (10%, 25%, 50% of pressure drop difference).

(5) Dust Holding Capacity Test – Calculates total dust mass retained in the filter to assess longevity and maintenance intervals.

Operation and Maintenance

(1) Install the filter securely with appropriate adapters to ensure proper sealing.

(2) Select test dust type (A2 or A4) and adjust the airflow according to the desired test protocol.

(3) Start automated test sequences via PLC + PC interface; monitor real-time airflow, pressure drop, and particle capture.

(4) Review visualized test curves and automatically generate Excel-format reports.

(5) Store historical data for long-term traceability and quality control.

(6) Perform routine cleaning, calibration, and validation of sensors and dust feeders.

(7) Remote monitoring and troubleshooting can be conducted using integrated camera and control systems.
