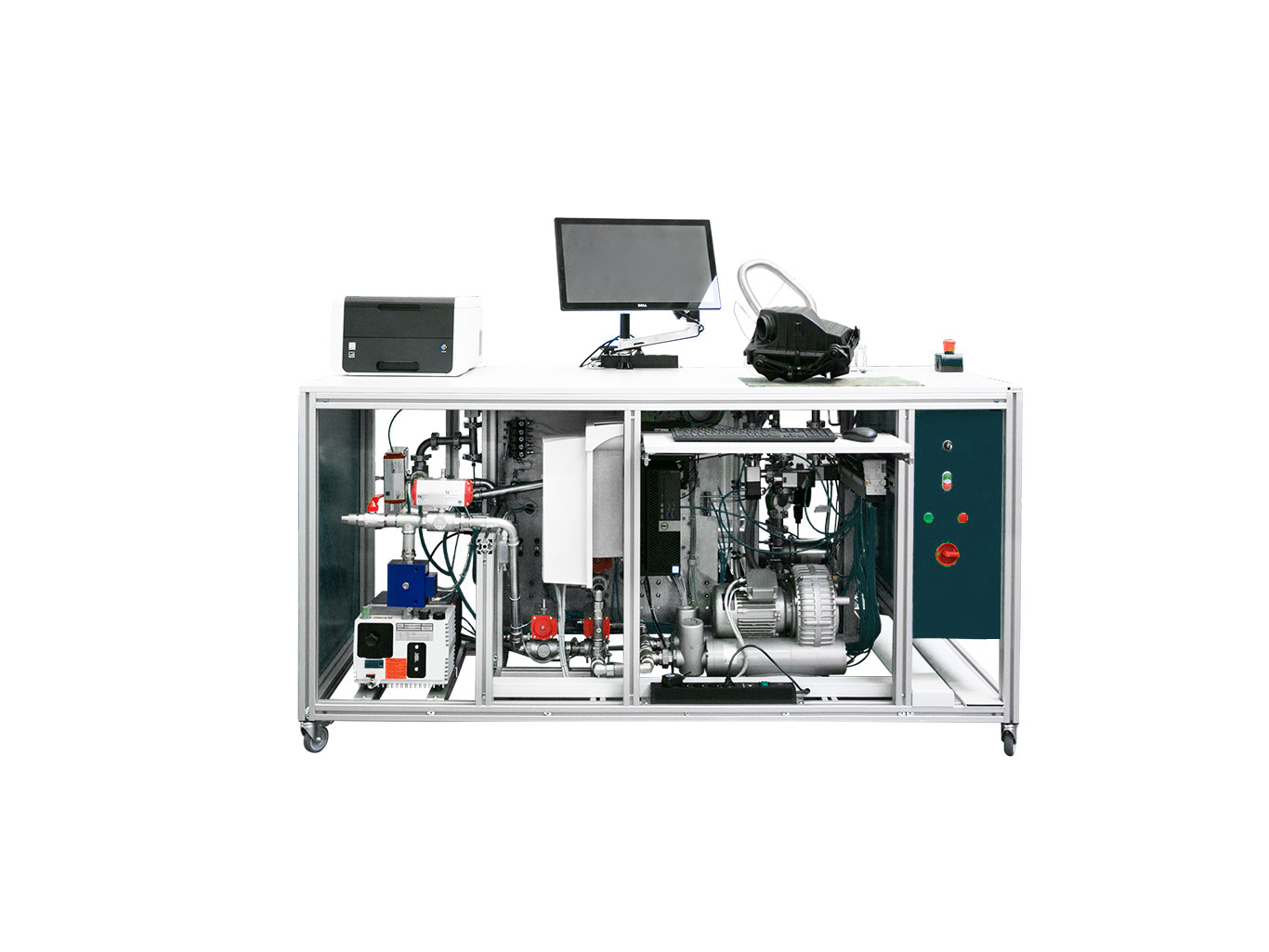

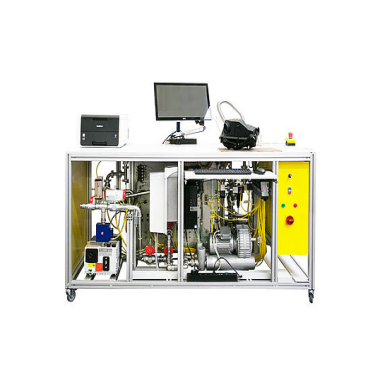

Test System for testing tightness and leackage for a high diversity of components and devices

Test System for testing tightness and leackage for a high diversity of components and devices. With Leak Test Systems of series it is possible to test tightness against over and low-pressure of components of different dimensions and shapes. The leak rate is determined depending on pressure.

The test rig is working at test air temperatures from -40°C up to 120°C. A heat exchanger protects the measurement instrumentation against damages because of too low or high temperatures during low pressure operation. For external connection the test rig has a test air adapter, a pressure measurement port as well as a temperature sensor which have to be connected with the test sample. All connecting lines are 2 m long so that the sample can be in a climatic chamber during the test.

Applications

tightness and leak testing of technical components and devices

Benefits

test pressure is measured directly at test sample

tests with over and low-pressure possible (pressure and suction mode)

wide temperature range of applicable test air

by means of cascading of several laminar flow elements wide volume flow range

compact design

mobile – easy to move by lockable weels

easy handling supported by computer-controlled test procedure

easy handling supported by computer-controlled test procedure

Technical data
