This bench tests HEPA/ULPA filter efficiency/resistance per EN1822, performs automated leak scanning
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

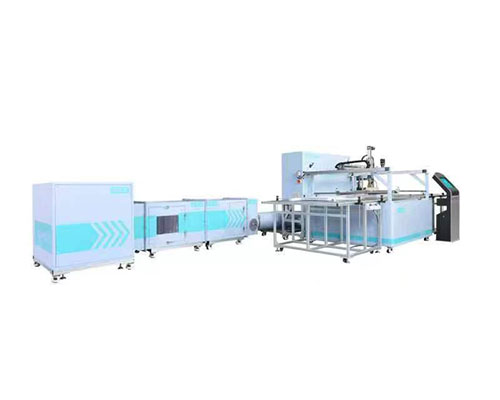

The high-efficiency filter scanning test bench (referred to as the test bench) is designed and manufactured in accordance with the principles and requirements of the European standard EN1822-4 and in reference to relevant standards. Under the determined air volume conditions, test the efficiency and resistance of the filter and use the automatic scanning method to detect leaks in the filter. The location of the leak point can also be repeatedly detected manually. The foundation and core of the test bench is the particle counter. The aerosol medium used in the test bench is liquid aerosol (DEHS), with a particle size of ≥0.3μm(0.1μm can be selected according to customer requirements).
EN 1822:2009 High efficiency air filters
GB/T 13554-2020 "High Efficiency Air Filters"
GBIT 6165-2021 "Test Methods for Performance of High Efficiency Air Filters - Efficiency and Resistance"
IEST-RP-CC007.2 ULPA filter test
1S029463-2011 High-efficiency air filter
| Upper computer | Adopt an advanced configuration software system |
| Lower computer | Siemens PLC |
| Counter | Five high-flow laser particle counters |
| Counter sampling flow | 28.3 L/min + 5% |
| Counter particle size range | 0.3μm, 0.5μm, 1.0μm, 3.0μm, 5.0μm, 10.0μm |
| Aerosol | DEHS |
| Diluter | 0.111111111 |
| Tested filter | Flat plate type high-efficiency filter |
| Filter size range | 300mmx300mm-1200mmx1200mm |
| Filter thickness range | 50mm-300mm |
| The efficiency range of the test | 85%-99.9995% @≥0.3μm |
| Air volume range | 500m³/h~3500m³/h |
| Resistance range | 0~1000pa |
| Measure the uniformity of wind speed at the cross-section | 10% or less |
| Scanning head speed | ≤5cm/s(adjustable) |
| Supply voltage | Three-phase four-wire :AC380V±5% Frequency: 50HZ |
| Power consumption | 10kW |
| Test bench dimensions | 8600x4000x2000mm(length x width x height)(estimated) |
| Gas source | (Oil-free, water-free):≥0.4MPa |
