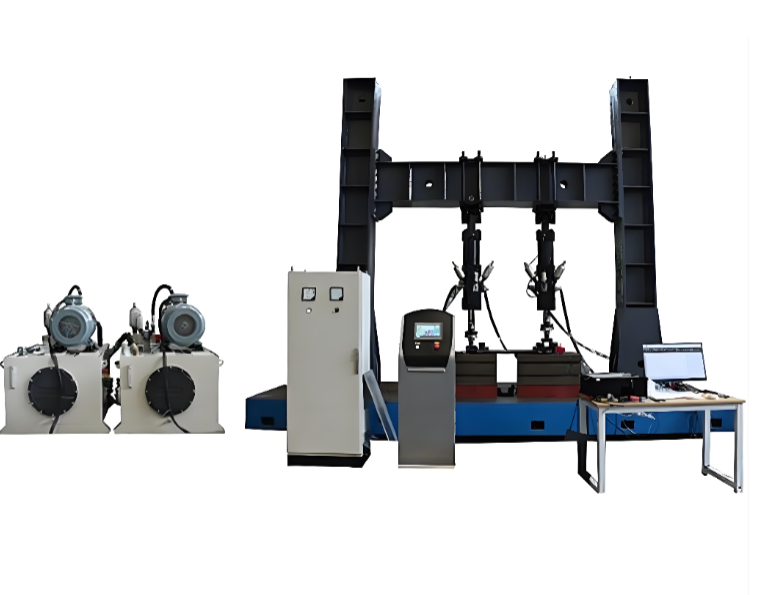

The Thrust Rod Fatigue Testing Machine is a specialized testing device used to evaluate the static and dynamic mechanical properties, stiffness, fatigue life, and durability performance of automotive thrust rods and related components. It can perform tensile, compression, torsion, and fatigue tests under simulated loading conditions to assess the reliability and service life of components.
GB/T 2611 — General Requirements for Testing Machines
GB/T 3075 — Metal Materials — Fatigue Testing — Axial Force-Controlled Method
GB/T 16826 — Electro-hydraulic Servo Universal Testing Machines
QC/T 29096 — Technical Conditions for Automotive Suspension Components
The Thrust Rod Fatigue Testing Machine (Multi-channel Optional) is mainly used for static and dynamic stiffness tests, tensile and compression fatigue tests, torsional fatigue tests, pull-out resistance tests, torsional pull-out resistance tests, axial tension and compression tests, radial compression tests, radial deflection tests, and axial torsion tests of straight thrust rods, V-type thrust rods, ball joints, rubber bushings, torsion rubber cores, rubber pads, and other materials and components.
By configuring corresponding fixtures and testing software, the machine can also be used for tensile, compression, bending, low-cycle fatigue, and high-cycle fatigue tests of various materials and components.
It is widely used in automotive components, vehicle manufacturers, construction machinery manufacturing, universities, research institutes, new product development, and testing organizations for mechanical performance evaluation and material testing.
| Item | Specification |
|---|---|
| Maximum Static Test Force | ±300 kN, full range without grading, indication accuracy ±1% within 2–100% range |
| Maximum Dynamic Test Force | ±300 kN, amplitude fluctuation ≤ ±2% |
| Actuator Amplitude | ±75 mm, indication accuracy ±0.5% |
| Test Frequency Range | 0.1–50 Hz |
| Controller Type | Two closed-loop control channels for force and displacement (force-controlled fatigue testing and displacement-controlled fatigue testing available) |
| Main Test Waveforms | Sine Wave, Triangle Wave, Square Wave, Combination Wave |
| Static Test Space | Maximum height: 800 mm; test width: 700 mm |
| Main Frame Stiffness | 3.0 × 10⁸ N/m |
| Flat Specimen Clamping Range | 1–21 mm |
| Round Specimen Clamping Range | Φ5–25 mm |
| Hydraulic Power Supply | Flow rate: 70 L/min; Pressure: 21 MPa |
| Main Machine Weight | Approx. 2500 kg |
| Hydraulic Power Unit Weight | Approx. 800 kg |
Multi-channel testing capability, supporting multiple mechanical performance and fatigue tests.
Electro-hydraulic servo loading system with high accuracy and stable performance.
Supports force-controlled and displacement-controlled closed-loop fatigue testing.
Various test modes available, including tension, compression, torsion, stiffness, and fatigue tests.
Supports multiple loading waveforms, such as sine wave, triangle wave, square wave, and combination wave.
High-precision force and displacement measurement with real-time data acquisition.
Suitable for automotive components, engineering machinery, research institutions, and quality inspection applications.
