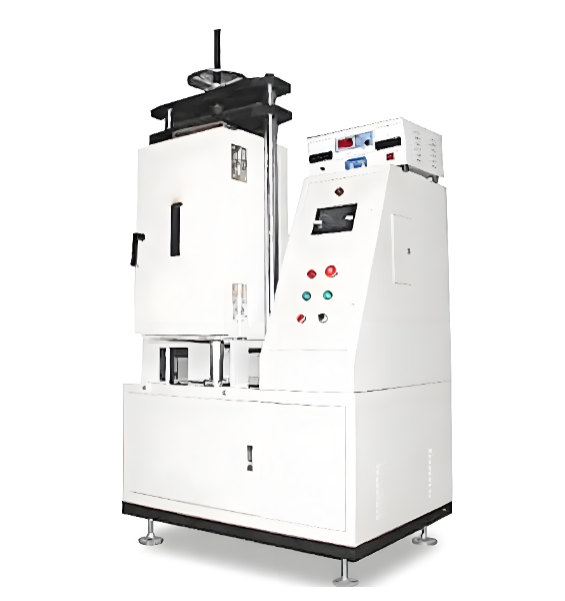

High Temperature Torsional Fatigue Testing Machine

The High and Low Temperature Torsional Fatigue Testing Machine is a specialized testing device used to evaluate the torsional fatigue life, durability, and mechanical properties of materials and components under high and low temperature environments.The machine simulates actual temperature conditions and applies repeated torsional loads to specimens, which is suitable for fatigue testing of torsion springs, elastomers, metal materials, non-metal materials, and mechanical components.

Applicable Standards

GB/T 2611 — General Requirements for Testing Machines

GB/T 10128 — Metallic Materials — Torsion Test Method at Room Temperature

JJG 269 — Verification Regulation of Torsion Testing Machines

GB/T 2423.1 / GB/T 2423.2 — Environmental Testing Methods for Electrical and Electronic Products (Low Temperature / High Temperature Test)

Relevant torsional fatigue testing standards for materials and components (according to customer requirements)

Function Introduction

The High and Low Temperature Torsional Fatigue Testing Machine consists of a high and low temperature chamber, temperature control system, servo power system, precision transmission system, and computer control and display system.

It is suitable for durability and fatigue life testing of various torsional elastomers, torsion springs, metal materials, non-metal materials, and other specimens under high and low temperature environments.The testing machine uses a servo speed control system to control motor operation. The computer sends commands to control the motor's forward and reverse rotation, completing the reciprocating torsional fatigue test of specimens.

Technical Specifications
