The device is a practical test method for rainfall, applicable to clothing products, including water
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

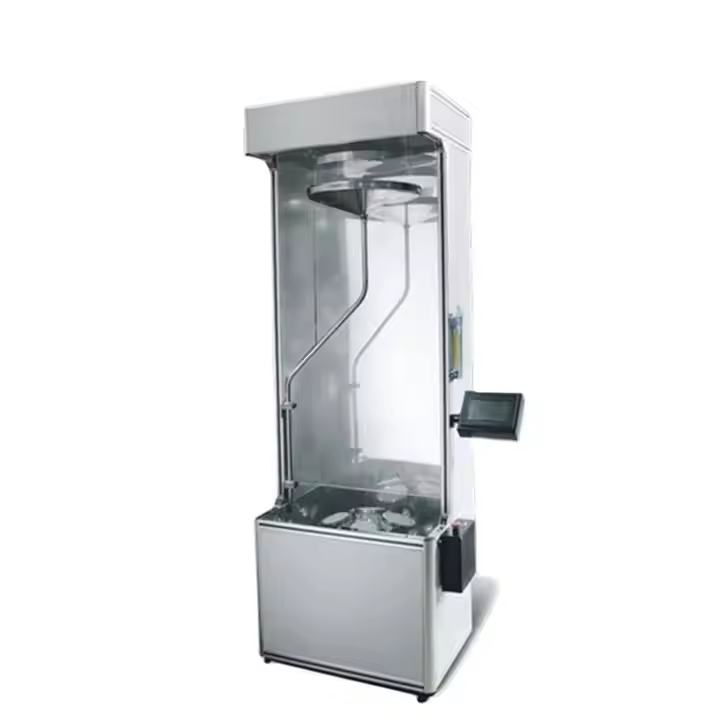

The Bundesmann Rain Tester simulates natural rainfall to evaluate the water repellency, wetting behavior, and absorption characteristics of textiles, including waterproof fabrics. The instrument features a rainfall unit with 300 uniform drips and a test-driving unit with rotating sample cups and cross-shaped wipers, ensuring precise and repeatable testing conditions.
This tester is widely used for:
Measuring surface wetting, water absorption, and outflow of clothing and textile materials.
Testing waterproof fabrics for outdoor apparel, protective clothing, and technical textiles.
Supporting quality control, R&D, and process optimization in the textile and apparel industries.
Ensuring compliance with international water repellency and hydrostatic resistance standards.
JIS L 1092 – Test method for water resistance of textiles
GB/T 14577 – Bundesmann rain test method for fabric water repellency determination
ISO 9865 – Textiles: Determination of water repellency of fabrics using the Bundesmann rain test
BS EN 29865 – Textiles: Determination of water repellency of fabrics using the Bundesmann rain test
DIN 53888 – Textiles: Determination of water resistant permeability – Hydrostatic test
(1) Rainfall portion consists of 300 identical drips for uniform precipitation.
(2) Test-driving portion has four sample cups with an outer diameter of 10 cm.
(3) Sample cups are mounted at 15° from vertical for realistic simulation.
(4) Each cup includes a sample installation box and cross-shaped wiper that gently rubs the fabric underside.
(5) Cups rotate around the instrument center, ensuring consistent exposure.
(6) Rainfall intensity is adjustable via a valve (100–300 ml/min per 100 cm²).
(7) Cross-wiper ensures uniform friction and contact pressure for accurate results.
| Item | Parameter |
|---|---|
| Rainfall area | ~1300 cm² |
| Drips | 300 pieces |
| Rainfall rate | 100–300 ml/min per 100 cm² (adjustable) |
| Sample size | Ф 140 mm |
| Test area | ~80 cm² |
| Test sample cup diameter | 100 mm |
| Test cup mounting angle | 15° |
| Test cup rotation speed | ~6°/min |
| Cross-wiper arm length | 48 mm |
| Cross-wiper width | 5 mm |
| Wiper rotation speed | ~20 times/min |
| Wiper friction pressure | ~2.5 N |
| Test duration | Displayed on screen |
| Device dimensions | ~φ80 × 220 cm |
| Weight | ~200 kg |
| Power supply | AC 220V, 50Hz, 200 W |
Standard sample cups and cross-shaped wipers
Rainfall drip assembly
Valve for rainfall adjustment
Optional: additional sample holders or calibration kits
(1) Install the fabric sample in the test cup.
(2) Position the cross-wiper beneath the fabric.
(3) Set rainfall intensity using the valve.
(4) Activate cup rotation and rainfall simulation.
(5) Monitor water absorption, surface wetting, and outflow.
(6) Record results displayed on the screen.
(7) Remove the sample and clean the device after testing.
(1) Clean the rainfall unit and drip nozzles to prevent blockage.
(2) Inspect cross-wipers and sample cups regularly for wear.
(3) Check rotation speed and wiper pressure periodically.
(4) Store the instrument in a dry, ventilated environment.
(5) Verify electrical connections and power supply before each test.
