Yarn tester ApplicationTwist Tester, is used to get the coefficient of twist, which is a measurement
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
ASTM D1422/1423.BS 2085.DIN 53832.ISO 2061.IWTO 25-70.GB/T 2543.1-2001/2543.2-2001

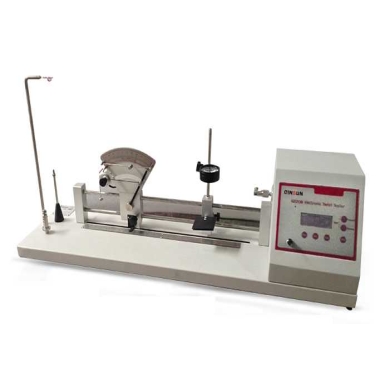

Twist Tester, is used to get the coefficient of twist, which is a measurement of the level of twist of the yarn, suitable for testing single or plied yarns, equipped with auto stop & reverse for conventional or untwist/re-twist methods, makes yarn twist testing an easy task for textile testing labs or factories.
Twist tester offers adjustable test length up to 500mm/20 inches for S & Z twist yarns, and inching function helps the operator to get an esteemed twist quickly. Test result in TPI / TPM is directly displayed on the touch screen.
The electric yarn twist tester can be used to determine yarn twist in single yarn or ply yarns, it is a kind of quadrant type tester with auto stop & reverse for conventional or untwist/re-twist methods. Test length adjustable up to 50cm/20 inches for S & Z twist yarns.
The weight of electronic Twist Tester: 16kg(36lb)
Outside dimensions of electronic Twist Tester: 1070×300×290mm(L×W×H)
Length of sample | 0-500mm(adjustable) |
Range of twist testing | 1-9999.9twist/10cm , 1-9999.9twist/m |
Max length of untwisting | 100mm (Showed by indicator) |
Max contracting of twisting | 10mm |
Grip speed | 800r/min and 1500r/min |
Presetting tension | 0.5-160.5cN |
Dimensions | 900 x 250 x 300mm ( L x W x H ) |
Weight | 20kg |
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
