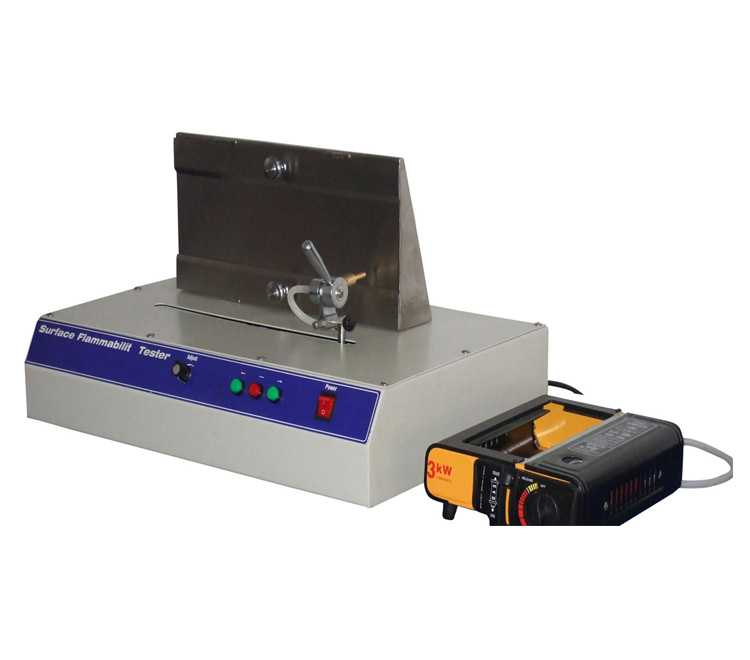

Surface Burning Tester

Application of Surface Flammability Tester：

The surface flammability Tester commonly used in the examination down or the superficial knowledge fabric's flammability, the flame spreads fast in the fabric surface, but the fabric Kieb structure is incombustible.

All kinds of children products can be tested on the Surface Flash Tester.

Principle:

The sheet of fabric is held vertically in a substantially draught-free enclosure and a flame is moved across the surface of the pile at a known speed to determine whether flame from the igniting source flashed over the surface of the pile.

Standards:

1. GB/T 8745-2001《textile Combustion performance fabric surface burning time measurement》

2. ISO 10047:1993《textile fabric surface burning time measurement》

3. BS4569

4. EN71

Product Information:

Brand：Qinsun

Model ：Q233C

Specifications:

Main features:

1. Electric wire ignition.

2. automatic timing positioning for burner

3. arbitrarily set the ignition time for 0 ~ 99.99 seconds. Automatically record the burning time, digital display.

FAQ:

How do you test for flammability?

The materials are placed over a Bunsen burner either vertically or horizontally, depending on the specification. During a vertical flammability test, a material is observed for the length of time it burns after the igniting flame is removed, how much of the specimen burns and whether or not it drips flaming particles.

What is the purpose of flammability test?

Flammability testing determines how easily a material or finished product will ignite or burn when exposed to or used near fire or heat.
